Purchase AD8509, In-stock AD8509 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8509
MFG: ADI
D/C: 09
Description: The AD8509 and AD8511 are 9-channel and 11-channel LCD reference buffers, respectively, designed to drive 64 g...
- Table of contents:
AD8509
-
Suppliers
DataSheet
General Description
AD8509 General Description
The AD8509 and AD8511 are 9-channel and 11-channel LCD reference buffers, respectively, designed to drive 64 gray scale column drivers. Each buffer has an A/B input to select between two voltages for LCD displays. These buffers drive the resistor ladders of LCD column drivers for gamma correction. These LCD drivers have higher slew rates and higher output drive currents than similar competitive parts. This increases the stability of the reference ladder, resulting in better gray scale and visual performance.
The AD8509 and AD8511 are specified over the −40°C to +85°C temperature range. They are available in 48-lead, thin shrink small outline (TSSOP), surface-mount, Pb-free packages in tape and reel.
AD8509 Maximum Ratings
Parameter Rating
Supply Voltage 7 V
Input Voltage GND to VS
Storage Temperature Range
RU Package −65°C to +150°C
Operating Temperature Range −40°C to +85°C
Junction Temperature Range
RU Package −65°C to +150°C
Lead Temperature Range
(Soldering, 60 sec) 300°C
Supply Voltage 7 V
Input Voltage GND to VS
Storage Temperature Range
RU Package −65°C to +150°C
Operating Temperature Range −40°C to +85°C
Junction Temperature Range
RU Package −65°C to +150°C
Lead Temperature Range
(Soldering, 60 sec) 300°C
AD8509 Features
Single-supply operation: 3.3 V to 6.5 V
High output current: 300 mA
Low supply current: 6 mA
Stable with 1000 pF loads
Pin-compatible with LMC6009
Pin-compatible with CL-FP6131
48-lead, Pb-free, TSSOP package
High output current: 300 mA
Low supply current: 6 mA
Stable with 1000 pF loads
Pin-compatible with LMC6009
Pin-compatible with CL-FP6131
48-lead, Pb-free, TSSOP package
AD8509 Typical Application
LCD line inversion gamma references

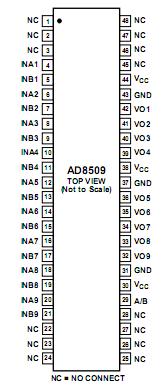

AD8509 Connection Diagram
AD8509
PDF/DataSheet Download
- Datasheet: AD8509
- File Size: 188344 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
