Part Number: AD8511



MFG: ADI



D/C: 09

Description: The AD8509 and AD8511 are 9-channel and 11-channel LCD reference buffers, respectively, designed to drive 64 g...


Urgent Purchase

AD8511 General Description


The AD8509 and AD8511 are 9-channel and 11-channel LCD  reference buffers, respectively, designed to drive 64 gray scale  column drivers. Each buffer has an A/B input to select between  two voltages for LCD displays. These buffers drive the resistor  ladders of LCD column drivers for gamma correction. These  LCD drivers have higher slew rates and higher output drive  currents than similar competitive parts. This increases the  stability of the reference ladder, resulting in better gray scale  and visual performance.

The AD8509 and AD8511 are specified over the −40°C to +85°C  temperature range. They are available in 48-lead, thin shrink  small outline (TSSOP), surface-mount, Pb-free packages in tape  and reel.

AD8511 Maximum Ratings

Parameter                                                                Rating
Supply Voltage                                                             7 V
Input Voltage                                                    GND to VS
Storage Temperature Range
RU Package                                         −65°C to +150°C
Operating Temperature Range             −40°C to +85°C
Junction Temperature Range
RU Package                                         −65°C to +150°C
Lead Temperature Range
    (Soldering, 60 sec)                                             300°C

AD8511 Features

Single-supply operation: 3.3 V to 6.5 V
High output current: 300 mA
Low supply current: 6 mA
Stable with 1000 pF loads
Pin-compatible with LMC6009
Pin-compatible with CL-FP6131
48-lead, Pb-free, TSSOP package


AD8511 Typical Application

LCD line inversion gamma references

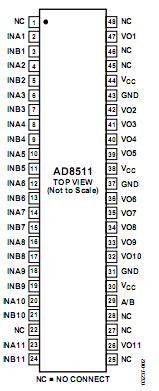

AD8511 Connection Diagram

AD8511 Connection Diagram
