Purchase AD8515, In-stock AD8515 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8515
MFG: ADI
D/C: 09
Description: The AD8515 is a rail-to-rail amplifier that can operate from a single-supply voltage as low as 1.8 V.<...
- Table of contents:
AD8515
-
Suppliers
DataSheet
General Description
AD8515 General Description
The AD8515 is a rail-to-rail amplifier that can operate from a single-supply voltage as low as 1.8 V.
The AD8515 single amplifier, available in SOT-23-5L and SC70-5L packages, is small enough to be placed next to sensors,reducing external noise pickup.
The AD8515 is a rail-to-rail input and output amplifier with a gain bandwidth of 5 MHz and typical offset voltage of 1 mV from a 1.8 V supply. The low supply current makes these parts ideal for battery-powered applications. The 2.7 V/ms slew rate makes the AD8515 a good match for driving ASIC inputs, such
as voice codecs.
The AD8515 is specified over the extended industrial tempera- ure range (40C to +125°C).
AD8515 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . ±6 V or ±VS
Output Short-Circuit Duration
to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Observe Derating Curves
Storage Temperature Rang
KS and RT Packages . . . . . . . . . . . . . . . . . . . . . . . .. . 65°C to +150°C
Operating Temperature Range
AD8515 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
KS and RT Packages . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . . . . . . . .. . . 300°C
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . ±6 V or ±VS
Output Short-Circuit Duration
to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Observe Derating Curves
Storage Temperature Rang
KS and RT Packages . . . . . . . . . . . . . . . . . . . . . . . .. . 65°C to +150°C
Operating Temperature Range
AD8515 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
KS and RT Packages . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . . . . . . . .. . . 300°C
AD8515 Features
Single-Supply Operation: 1.8 V to 5 V
Offset Voltage: 6 mV Max
Space-Saving SOT-23 and SC70 Packages
Slew Rate: 2.7 V/s
Bandwidth: 5 MHz
Rail-to-Rail Input and Output Swing
Low Input Bias Current: 2 pA Typ
Low Supply Current @ 1.8 V: 450 A Max
Offset Voltage: 6 mV Max
Space-Saving SOT-23 and SC70 Packages
Slew Rate: 2.7 V/s
Bandwidth: 5 MHz
Rail-to-Rail Input and Output Swing
Low Input Bias Current: 2 pA Typ
Low Supply Current @ 1.8 V: 450 A Max
AD8515 Typical Application
Portable Communications
Portable Phones
Sensor Interfaces
Laser Scanners
PCMCIA Cards
Battery-Powered Devices
New Generation Phones
Personal Digital Assistants
Portable Phones
Sensor Interfaces
Laser Scanners
PCMCIA Cards
Battery-Powered Devices
New Generation Phones
Personal Digital Assistants

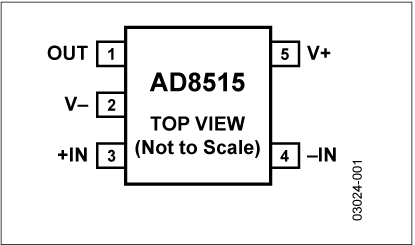

AD8515 Connection Diagram
AD8515
PDF/DataSheet Download
- Datasheet: AD8515
- File Size: 248354 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
