Purchase AD8519, In-stock AD8519 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8519
MFG: ADI
D/C: 09
Description: The AD8519 and AD8529 are rail-to-rail output bipolar amplifi- ers with a unity gain bandwidth of 8 MHz and a typical v...
- Table of contents:
AD8519
-
Suppliers
DataSheet
General Description
AD8519 General Description
The AD8519 and AD8529 are rail-to-rail output bipolar amplifi- ers with a unity gain bandwidth of 8 MHz and a typical voltage offset of less than 1 mV. The AD8519 brings precision and band- width to the SOT-23 package. The low supply current makes the AD8519/AD8529 ideal for battery powered applications. The rail-to-rail output swing of the AD8519/AD8529 is larger than standard video op amps, making them useful in applications that require greater dynamic range than standard video op amps. The +2.7 V/µs slew rate makes the AD8529/AD8549 a good match for driving ASIC inputs such as voice codecs.
AD8519 Maximum Ratings
ABSOLUTE MAXIMUM RATINGS
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6 V
Differential Input Voltage. . . . . . . . . . . . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOT-23 (RT) . . . . . . . . . . . . . . . . . Observe Derating Curve
SOIC (R) . . . . . . . . . . . . . . . . . . . .Observe Derating Curve
µSOIC (RM) . . . . . . . . . . . . . . . . . Observe Derating Curve
Output Short-Circuit Duration . . . .Observe Derating Curve
Storage Temperature Range
RT, S Packages . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8519, AD8529 . . . . . . . . . . . . . . . . .40°C to +125°C
Junction Temperature Range
RT, S Packages . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . +300°C
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6 V
Differential Input Voltage. . . . . . . . . . . . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOT-23 (RT) . . . . . . . . . . . . . . . . . Observe Derating Curve
SOIC (R) . . . . . . . . . . . . . . . . . . . .Observe Derating Curve
µSOIC (RM) . . . . . . . . . . . . . . . . . Observe Derating Curve
Output Short-Circuit Duration . . . .Observe Derating Curve
Storage Temperature Range
RT, S Packages . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8519, AD8529 . . . . . . . . . . . . . . . . .40°C to +125°C
Junction Temperature Range
RT, S Packages . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . +300°C
AD8519 Features
Space-Saving SOT-23, mSOIC Packaging
Wide Bandwidth: 8 MHz @ 5 V
Low Offset Voltage: 1.2 mV Max
Rail-to-Rail Output Swing
2.7 V/ms Slew Rate
Unity Gain Stable
Single Supply Operation: +2.7 V to +12 V
Wide Bandwidth: 8 MHz @ 5 V
Low Offset Voltage: 1.2 mV Max
Rail-to-Rail Output Swing
2.7 V/ms Slew Rate
Unity Gain Stable
Single Supply Operation: +2.7 V to +12 V
AD8519 Typical Application
Portable Communications
Microphone Amplifiers
Portable Phones
Sensor Interface
Active Filters
PCMCIA Cards
ASIC Input Drivers
Wearable Computers
Battery Powered Devices
Voltage Reference Buffers
Personal Digital Assistants
Microphone Amplifiers
Portable Phones
Sensor Interface
Active Filters
PCMCIA Cards
ASIC Input Drivers
Wearable Computers
Battery Powered Devices
Voltage Reference Buffers
Personal Digital Assistants

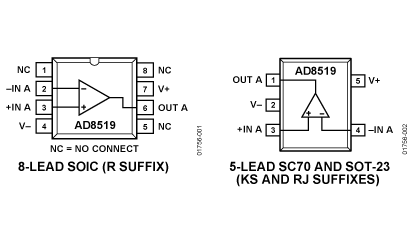

AD8519 Connection Diagram
AD8519
