Purchase AD8567, In-stock AD8567 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8567
MFG: ADI
D/C: 09
Description: The AD8565, AD8566, and AD8567 are low-cost single supply rail-to-rail input and output operational amplifiers optimize...
- Table of contents:
AD8567
-
Suppliers
DataSheet
General Description
AD8567 General Description
The AD8565, AD8566, and AD8567 are low-cost single supply rail-to-rail input and output operational amplifiers optimized for LCD monitor applications. They are built on an advanced high-voltage CBCMOS process. The AD8565 contains a single amplifier, the AD8566 has two amplifiers, and the AD8567 has four amplifiers.
These LCD op amps have high slew rates, 35 mA continuous output drive, 250 mA peak output drive, and high capacitive load drive capability. They have wide supply range and offset voltages below 10 mV. The AD8565, AD8566, and AD8567 are ideal for LCD grayscale reference buffer and VCOM applications.
The AD8565, AD8566, and AD8567 are specified over the40°Cto +85°C temperature range. The AD8565 single is available in a 5-lead SC70 package. The AD8566 dual is available in an 8-leadMSOP package. The AD8567 quad is available in a 14-lead TSSOP package and a 16-lead lead frame Chip Scale Package.
AD8567 Maximum Ratings
Supply Voltage (VS) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .18 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . 0.5 V to VS + 0.5 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ... . . .VS
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Operating Temperature Range . . . . . . . . . .40°C to +85°C
Junction Temperature Range . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . .300°C
Input Voltage . . . . . . . . . . . . . . . . . . . . . 0.5 V to VS + 0.5 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ... . . .VS
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Operating Temperature Range . . . . . . . . . .40°C to +85°C
Junction Temperature Range . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . .300°C
AD8567 Features
Single-Supply Operation: 4.5 V to 16 V
Input Capability Beyond the Rails
Rail-to-Rail Output Swing
Continuous Output Current: 35 mA
Peak Output Current: 250 mA
Offset Voltage: 10 mV
Slew Rate: 6 V/
Input Capability Beyond the Rails
Rail-to-Rail Output Swing
Continuous Output Current: 35 mA
Peak Output Current: 250 mA
Offset Voltage: 10 mV
Slew Rate: 6 V/

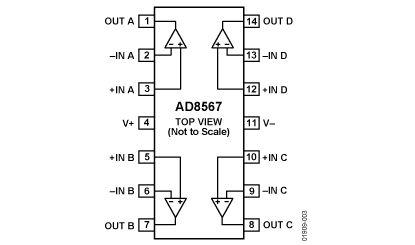

AD8567 Connection Diagram
AD8567
