Purchase AD9020, In-stock AD9020 From SeekIC.
Part Number: AD9020
Description: The AD9020 A/D converter is a 10-bit monolithic converter capable of word rates of 60 MSPS and above. Innovative archit...
- Table of contents:
AD9020
-
Suppliers
DataSheet
General Description
AD9020 General Description
The AD9020 A/D converter is a 10-bit monolithic converter capable of word rates of 60 MSPS and above. Innovative architecture using 512 input comparators instead of the traditional 1024 required by other flash converters reduces input capacitance and improves linearity.
Encode and outputs are TTL-compatible, making the AD9020 an ideal candidate for use in low power systems. An overflow bit is provided to indicate analog input signals greater than +VSENSE. Voltage sense lines are provided to insure accurate driving of the ±VREF voltages applied to the units. Quarter-point taps on the resistor ladder help optimize the integral linearity of the unit. Either 68-pin ceramic leaded (gull wing) packages or ceramic LCCs are available and are specifically designed for low thermal impedances. Two performance grades for temperatures of both 0°C to +70°C and 55°C to +125°C ranges are offered to allow the user to select the linearity best suited for each application. Dynamic performance is fully characterized and production tested at +25°C. MIL-STD-883 units are available. The AD9020 A/D Converter is available in versions compliant with MIL-STD-883. Refer to the Analog Devices Military Prod- ucts Databook or current AD9020/883B data sheet for detailed specifications.
AD9020 Maximum Ratings
+VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+6 V
VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 V
ANALOG IN . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 V to +2 V
+VREF, VREF, 3/4REF, 1/2REF, 1/4REF . . . . . . . . . 2 V to +2 V
+VREF to VREF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.0 V
DIGITAL INPUTS . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to +VS
VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 V
ANALOG IN . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 V to +2 V
+VREF, VREF, 3/4REF, 1/2REF, 1/4REF . . . . . . . . . 2 V to +2 V
+VREF to VREF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.0 V
DIGITAL INPUTS . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to +VS
AD9020 Features
Monolithic 10-Bit/60 MSPS Converter
TTL Outputs
Bipolar (61.75 V) Analog Input
56 dB SNR @ 2.3 MHz Input
Low (45 pF) Input Capacitance
MIL-STD-883 Compliant Versions Available
TTL Outputs
Bipolar (61.75 V) Analog Input
56 dB SNR @ 2.3 MHz Input
Low (45 pF) Input Capacitance
MIL-STD-883 Compliant Versions Available
AD9020 Typical Application
Digital Oscilloscopes
Medical Imaging
Professional Video
Radar Warning/Guidance Systems
Infrared Systems
Medical Imaging
Professional Video
Radar Warning/Guidance Systems
Infrared Systems

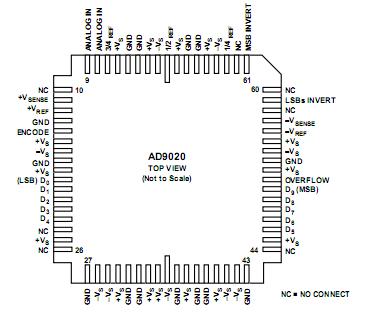

AD9020 Connection Diagram
AD9020
