Part Number: AD9054



MFG: TOSHIBA

Package Cooled: SOP

D/C: 500

Description: The AD9054 is an 8-bit monolithic analog-to-digital converter optimized for high speed, low power, small size and ease ...


Urgent Purchase

AD9054 General Description


The AD9054 is an 8-bit monolithic analog-to-digital converter optimized for high speed, low power, small size and ease of use. With a 200 MSPS encode rate capability and full-power analog bandwidth of 350 MHz, the component is ideal for applications requiring the highest possible dynamic performance.

To minimize system cost and power dissipation, the AD9054 includes an internal +2.5 V reference and track-and-hold circuit. The user provides only a +5 V power supply and an encode clock.  No external reference or driver components are required for many applications.The AD9054's encode input interfaces directly to TTL, CMOS or positive-ECL logic and will operate with single-ended or differential inputs.  The user may select dual-channel or single- channel digital outputs.  The dual (demultiplexed) mode inter- leaves ADC data through two 8-bit channels at one-half the clock rate. Operation in demultiplexed mode reduces the speed and cost of external digital interfaces while allowing the ADC to be clocked to the full 200 MSPS conversion rate.  In the single- channel (nondemultiplexed) mode, all data is piped at the full clock rate to the Channel A outputs. Fabricated with an advanced BiCMOS process, the AD9054 is provided in a space-saving 44-lead TQFP surface mount plastic package (ST-44) and specified over the full industrial (40°C to +85°C) temperature range.

AD9054 Maximum Ratings

VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+6 V
Analog Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . .VDD to 0.0 V
Digital Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . VDD to 0.0 V
VREF IN, VREF OUT  . . . . . . . . . . . . . . . . . . .      VDD to 0.0 V
Digital Output Current  . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature  . . . . . . . . . . . . . . 55°C to +125°C
Storage Temperature  . . . . . . . . . . . . . . . .65°C to +150°C
Maximum Junction Temperature  . . . . . . . . . . . . . .   +175°C
Maximum Case Temperature  . . . . . . . . . . . . . . . . . .+150°C

AD9054 Features

200 MSPS Guaranteed Conversion Rate
135 MSPS Low Cost Version Available
350 MHz Analog Bandwidth
1 V p-p Analog Input Range
Internal +2.5 V Reference and T/H
Low Power: 500 mW
+5 V Single Supply Operation
TTL Output Interface
Single or Demultiplexed Output Ports

AD9054 Typical Application

RGB Graphics Processing
High Resolution Video
Digital Data Storage Read Channels
Digital Communications
Digital Instrumentation
Medical Imaging

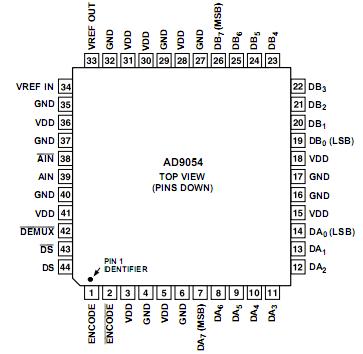

AD9054 Connection Diagram

AD9054 Connection Diagram
