Part Number: AD9057
Package Cooled: 755
Description: The AD9057 is an 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ease o...
- Table of contents:
AD9057
-
Suppliers
DataSheet
General Description
AD9057 General Description
The AD9057 is an 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ease of use. With a 40 MSPS, 60 MSPS, or 80 MSPS encode rates capability and full-power analog bandwidth of 120 MHz, the component is ideal for applications requiring excellent dynamic performance.
To minimize system cost and power dissipation, the AD9057 includes an internal 2.5 V reference and a track-and-hold circuit. The user must provide only a 5 V power supply and an encode clock. No external reference or driver components are required for many applications. The AD9057's encode input is TTL/CMOS compatible and the 8-bit digital outputs can be operated from 5 V or 3 V supplies. A power-down function may be exercised to bring total consumption to < 10 mW. In power-down mode the digital outputs are driven to a high impedance state. Fabricated on an advanced BiCMOS process, the AD9057 is available in a space saving 20-lead surface mount plastic pack- age (20 SSOP) and is specified over the industrial (40°C to +85°C) temperature range.
AD9057 Maximum Ratings
VD, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Analog Inputs . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
Digital Inputs . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
VREF Input . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature . . . . . . . . . . . . . . .55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
Maximum Case Temperature . . . . . . . . . . . . . . . . . . . 150°C
Analog Inputs . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
Digital Inputs . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
VREF Input . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature . . . . . . . . . . . . . . .55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
Maximum Case Temperature . . . . . . . . . . . . . . . . . . . 150°C
AD9057 Features
8-Bit, Low Power ADC: 200 mW Typical
120 MHz Analog Bandwidth
On-Chip 2.5 V Reference and T/H
1 V p-p Analog Input Range
Single 5 V Supply Operation
5 V or 3 V Logic Interface
Power-Down Mode: < 10 mW
Three Performance Grades (40 MSPS, 60 MSPS, 80 MSPS)
120 MHz Analog Bandwidth
On-Chip 2.5 V Reference and T/H
1 V p-p Analog Input Range
Single 5 V Supply Operation
5 V or 3 V Logic Interface
Power-Down Mode: < 10 mW
Three Performance Grades (40 MSPS, 60 MSPS, 80 MSPS)
AD9057 Typical Application
Digital Communications (QAM Demodulators)
RGB and YC/Composite Video Processing
Digital Data Storage Read Channels
Medical Imaging
Digital Instrumentation
RGB and YC/Composite Video Processing
Digital Data Storage Read Channels
Medical Imaging
Digital Instrumentation

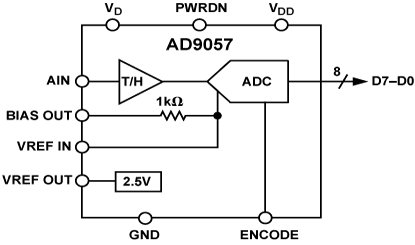

AD9057 Connection Diagram
AD9057
