Purchase AD9059, In-stock AD9059 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9059
MFG: ADI
D/C: 09
Description: The AD9059 is a dual 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ea...
- Table of contents:
AD9059
-
Suppliers
DataSheet
General Description
AD9059 General Description
The AD9059 is a dual 8-bit monolithic analog-to-digital converter optimized for low cost, low power, small size, and ease of use. With a 60 MSPS encode rate capability and full-power analog bandwidth of 120 MHz typical, the component is ideal for applications requiring multiple ADCs with excellent dy-
namic performance.
To minimize system cost and power dissipation, the AD9059 includes an internal +2.5 V reference and dual track-and-hold circuits. The ADC requires only a +5 V power supply and an encode clock. No external reference or driver components are required for many applications. The AD9059's single encode input is TTL/CMOS compatible and simultaneously controls both internal ADC channels. The parallel 8-bit digital outputs can be operated from +5 V or +3 V supplies. A power-down function may be exercised to bring total consumption to < 12 mW when ADC data is not required for lengthy periods of time. In power-down mode the digital outputs are driven to a high impedance state. Fabricated on an advanced BiCMOS process, the AD9059 is available in a space saving 28-lead surface mount plastic package (28 SSOP) and is specified over the industrial (40°C to +85°C) temperature range.
AD9059 Maximum Ratings
VD, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7 V
Analog Inputs . . . . . . . . . . . . . . . . . . . . .0.5 V to VD + 0.5 V
Digital Inputs . . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
VREF Input . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature . . . . . . . . . . . . . . . 55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . .65°C to +150°C
Analog Inputs . . . . . . . . . . . . . . . . . . . . .0.5 V to VD + 0.5 V
Digital Inputs . . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
VREF Input . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature . . . . . . . . . . . . . . . 55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . .65°C to +150°C
AD9059 Features
Dual 8-Bit ADCs on a Single Chip
Low Power: 400 mW Typical
On-Chip +2.5 V Reference and T/Hs
1 V p-p Analog Input Range
Single +5 V Supply Operation
+5 V or +3 V Logic Interface
120 MHz Analog Bandwidth
Power-Down Mode: < 12 mW
Low Power: 400 mW Typical
On-Chip +2.5 V Reference and T/Hs
1 V p-p Analog Input Range
Single +5 V Supply Operation
+5 V or +3 V Logic Interface
120 MHz Analog Bandwidth
Power-Down Mode: < 12 mW
AD9059 Typical Application
Digital Communications (QAM Demodulators)
RGB & YC/Composite Video Processing
Digital Data Storage Read Channels
Medical Imaging
Digital Instrumentation
RGB & YC/Composite Video Processing
Digital Data Storage Read Channels
Medical Imaging
Digital Instrumentation

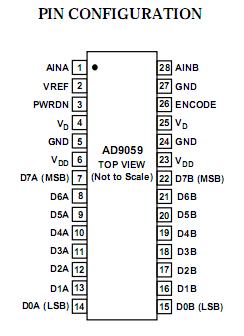

AD9059 Connection Diagram
AD9059
