Purchase AD9230, In-stock AD9230 From SeekIC.

MFG:TOSHIBA  Package Cooled:DIP  D/C:500

AD9230 Product Image

AD9 Series Datasheet download

Five Points

Part Number: AD9230



MFG: TOSHIBA

Package Cooled: DIP

D/C: 500

Description: The AD9230 is a 12-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The pro...


Urgent Purchase

AD9230 General Description


The AD9230 is a 12-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates at up to a 250 MSPS conversion rate and is

AD9230 Maximum Ratings

Resolution (Bits) 12bit
T-Put Rate 250MSPS
# Chan 1
Supply V Multi(+1.8Anlg, +1.8Dig)
Pwr Diss 463mW
Interface LVDS,Par,Ser,SPI
Ain Range 1.25 V p-p
SNR (dB) 64.1dB
Pkg Type CSP

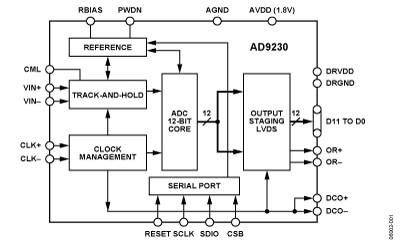

AD9230 Connection Diagram

AD9230 Connection Diagram

AD9230 datasheet
