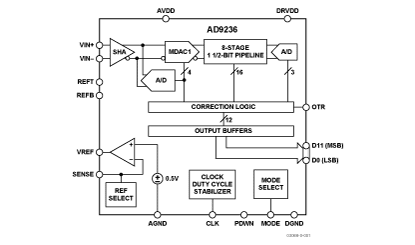

AD9236 Product Image

AD9 Series Datasheet download

Five Points

Part Number: AD9236



MFG: ADI



D/C: 09

Description: The AD9236 is a monolithic, single 3 V supply, 12-bit, 80 MSPS analog-to-digital converter featuring a high perfo...


Urgent Purchase

AD9236 General Description


The AD9236 is a monolithic, single 3 V supply, 12-bit, 80 MSPS  analog-to-digital converter featuring a high performance sample-and-hold amplifier (SHA) and voltage reference. The  AD9236 uses a multistage differential pipelined architecture  with output error correction logic to provide 12-bit accuracy at  80 MSPS and guarantee no missing codes over the full operating temperature range.

The wide bandwidth, truly differential SHA allows a variety of  user-selectable input ranges and common modes, including  single-ended applications. It is suitable for multiplexed systems  that switch full-scale voltage levels in successive channels and  for sampling single-channel inputs at frequencies well beyond  the Nyquist rate. Combined with power and cost savings over  previously available analog-to-digital converters, the AD9236 is  suitable for applications in communications, imaging, and  medical ultrasound. A single-ended clock input is used to control all internal conversion cycles. A duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.

AD9236 Maximum Ratings

AVDD                   AGND                    0.3    +3.9               V
DRVDD                DGND                     0.3    +3.9               V
AGND                  DGND                     0.3    +0.3               V
AVDD                  DRVDD                    3.9    +3.9               V

AD9236 Features

Single 3 V supply operation (2.7 V to 3.6 V)
SNR = 70.4 dBc to Nyquist
SFDR = 87.8 dBc to Nyquist
Low power: 366 mW
Differential input with 500 MHz bandwidth
On-chip reference and sample-and-hold
DNL = ±  0.4 LSB
Flexible analog input: 1 V p-p to 2 V p-p range
Offset binary or twos complement data format
Clock duty cycle stabilizer

AD9236 Typical Application

High end medical imaging equipment
IF sampling in communications receivers:  WCDMA, CDMA-One, CDMA-2000
Battery-powered instruments
Hand-held scopemeters
Low cost digital oscilloscopes
DTV subsystems

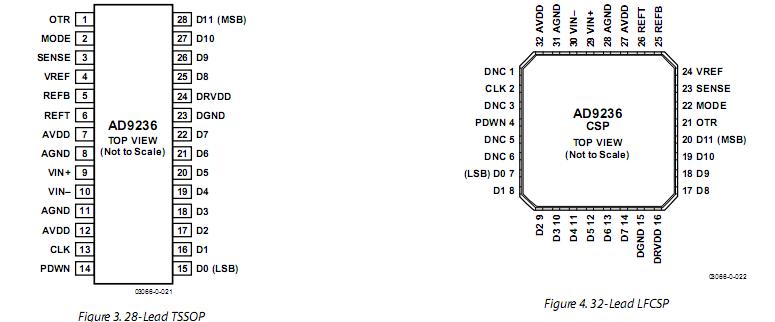

AD9236 Connection Diagram

AD9236 Connection Diagram
