Part Number: AD9240
MFG: ADI
D/C: 09
Description: The AD9240 is a 10 MSPS, single supply, 14-bit analog-to- digital converter (ADC). It combines a low cost, high speed C...
- Table of contents:
AD9240
-
Suppliers
DataSheet
General Description
AD9240 General Description
The AD9240 is a 10 MSPS, single supply, 14-bit analog-to- digital converter (ADC). It combines a low cost, high speed CMOS process and a novel architecture to achieve the resolution and speed of existing hybrid implementations at a fraction of the power consumption and cost. It is a complete, monolithic ADC with an on-chip, high performance, low noise sample-and-hold amplifier and programmable voltage reference. An external reference can also be chosen to suit the dc accuracy and temperature drift requirements of the application. The device uses a multistage differential pipelined architecture with digital output error correction logic to guarantee no missing codes over the full operating temperature range.
The input of the AD9240 is highly flexible, allowing for easy interfacing to imaging, communications, medical and data- acquisition systems. A truly differential input structure allows for both single-ended and differential input interfaces of varying input spans. The sample-and-hold amplifier (SHA) is equally suited for multiplexed systems that switch full-scale voltage levels in successive channels as well as sampling single-channel inputs at frequencies up to and beyond the Nyquist rate. The AD9240 also performs well in communication systems employing Direct-IF Down Conversion, since the SHA in the differential input mode can achieve excellent dynamic performance well beyond its specified Nyquist frequency of 5MHz.
AD9240 Maximum Ratings
AVDD AVSS 0.3 +6.5 V
DVDD DVSS 0.3 +6.5 V
AVSS DVSS 0.3 +0.3 V
AVDD DVDD 6.5 +6.5 V
DRVDD DRVSS 0.3 +6.5 V
DRVSS AVSS 0.3 +0.3 V
REFCOM AVSS 0.3 +0.3 V
DVDD DVSS 0.3 +6.5 V
AVSS DVSS 0.3 +0.3 V
AVDD DVDD 6.5 +6.5 V
DRVDD DRVSS 0.3 +6.5 V
DRVSS AVSS 0.3 +0.3 V
REFCOM AVSS 0.3 +0.3 V
AD9240 Features
Monolithic 14-Bit, 10 MSPS A/D Converter
Low Power Dissipation: 285 mW
Single +5 V Supply
Integral Nonlinearity Error: 2.5 LSB
Differential Nonlinearity Error: 0.6 LSB
Input Referred Noise: 0.36 LSB
Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference
Signal-to-Noise and Distortion Ratio: 77.5 dB
Spurious-Free Dynamic Range: 90 dB
Out-of-Range Indicator
Straight Binary Output Data
44-Lead MQFP
Low Power Dissipation: 285 mW
Single +5 V Supply
Integral Nonlinearity Error: 2.5 LSB
Differential Nonlinearity Error: 0.6 LSB
Input Referred Noise: 0.36 LSB
Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference
Signal-to-Noise and Distortion Ratio: 77.5 dB
Spurious-Free Dynamic Range: 90 dB
Out-of-Range Indicator
Straight Binary Output Data
44-Lead MQFP

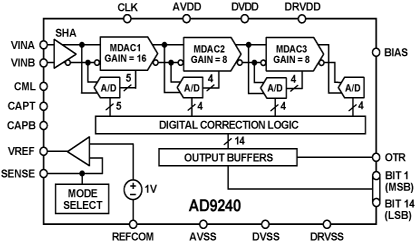

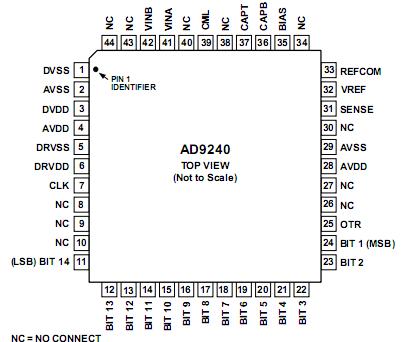

AD9240 Connection Diagram
AD9240
PDF/DataSheet Download
- Datasheet: AD9240
- File Size: 336766 KB
- Manufacturer: AD [Analog Devices]
