Purchase AD9243, In-stock AD9243 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9243
MFG: ADI
D/C: 09
Description: The AD9243 is a 3 MSPS, single supply, 14-bit analog-to- digital converter (ADC). It combines a low cost, high speed CMOS process and a...
- Table of contents:
AD9243
-
Suppliers
DataSheet
General Description
AD9243 General Description
The AD9243 is a 3 MSPS, single supply, 14-bit analog-to- digital converter (ADC). It combines a low cost, high speed CMOS process and a novel architecture to achieve the resolution and speed of
AD9243 Maximum Ratings
| Resolution (Bits) | 14bit |
| T-Put Rate | 3MSPS |
| # Chan | 1 |
| Supply V | Single(+5) |
| Pwr Diss | 145mW |
| Interface | Par |
| Ain Range | (2Vref) p-p,2 V p-p,5V p-p,Uni (Vref) x 2,Uni 2.0V,Uni 5.0V |
| SNR (dB) | 80dB |
| Pkg Type | QFP |

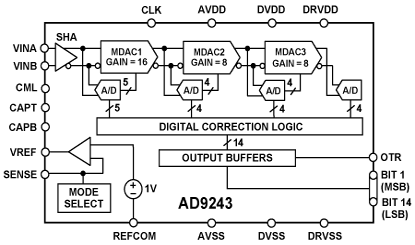

AD9243 Connection Diagram
AD9243
PDF/DataSheet Download
- Datasheet: AD9243
- File Size: 559049 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
