AD9300
Suppliers
DataSheet
General Description

Purchase AD9300, In-stock AD9300 From SeekIC.

MFG:TOSHIBA Package Cooled:SMD D/C:100

AD9 Series Datasheet download

Five Points

Part Number: AD9300

MFG: TOSHIBA

Package Cooled: SMD

D/C: 100

Description: The AD9300 is a monolithic high speed video signal multiplexer usable in a wide variety of applications. Its four chann...

AD9300 General Description

The AD9300 is a monolithic high speed video signal multiplexer usable in a wide variety of applications. Its four channels of video input signals can be randomly switched at megahertz rates to the single output. In addition,multiple devices can be configured in either parallel or cascade arrangements to form switch matrices. This flexibility in using the AD9300 is possible because the output of the device is in a high-impedance state when the chip is not enabled; when the chip is enabled, the unit acts as a buffer with a high input impedance and low output impedance.

An advanced bipolar process provides fast, wideband switching capabilities while maintaining crosstalk rejection of 72 dB at 10 MHz. Full power bandwidth is a minimum 27 MHz. The device can be operated from ±10 V to ±15 V power supplies.The AD9300K is available in a 16-pin ceramic DIP and a 20-pin PLCC and is designed to operate over the commercial temperature range of 0°C to +70°C. The AD9300TQ is a hermetic 16-pin ceramic DIP for military temperature range (55°C to +125°C) applications. This part is also available processed to MIL-STD-883. The AD9300 is available in a 20-pin LCC as the model AD9300TE, which operates over a temperature range of 55°C to +125°C.

AD9300 Maximum Ratings

Supply Voltages (±V_S) . . . . . . . . . . . . . . . . . . . . . . . .±16 V
Analog Input Voltage Each Input
(IN1 thru IN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3.5 V
Differential Voltage Between Any Two
Inputs (IN1 thru IN4) . . . . . . . . . . . . . . . . . . . . . . . . . .5 V
Digital Input Voltages (A0, A1, ENABLE) . 0.5 V to +5.5 V
Output Current
Sinking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 mA
Sourcing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.0 mA
Operating Temperature Range
AD9300KQ/KP . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Storage Temperature Range . . . . . . . . .65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . .+175°C
Lead Soldering (10 sec) . . . . . . . . . . . . . . . . . . . . +300°C

AD9300 Features

34 MHz Full Power Bandwidth
60.1 dB Gain Flatness to 8 MHz
72 dB Crosstalk Rejection @ 10 MHz
0.038/0.01% Differential Phase/Gain
Cascadable for Switch Matrices
MIL-STD-883 Compliant Versions Available

AD9300 Typical Application

Video Routing
Medical Imaging
Electro Optics
ECM Systems
Radar Systems
Data Acquisition

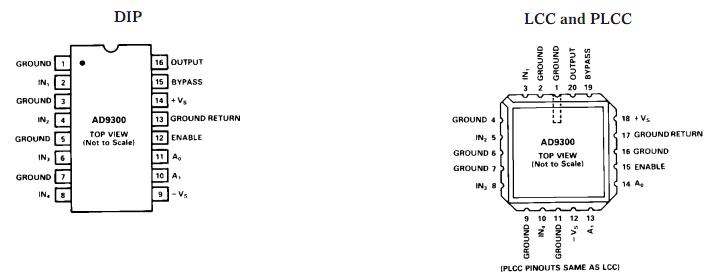

AD9300 Connection Diagram

AD9300 datasheet

AD9300
PDF/DataSheet Download

Datasheet: AD9300
File Size: 162344 KB
Manufacturer: AD [Analog Devices]
Click here to Download
