AD9480

Features:

DNL = ± 0.25 LSB
INL = ± 0.5 LSB
Single 3.3 V supply operation (3.0 to 3.6 V)
Power dissipation of 590 mW at 250 MSPS
1 V p-p analog input range
Internal 1.0 V reference
Single-ended or differential analog inputs
LVDS outputs (ANSI 644 levels)
Power-down mode
Clock duty cycle stabilizer





Application

Digital oscilloscopes
Instrumentation and measurement
Communications:
Point-to-point radios
Predistortion loops

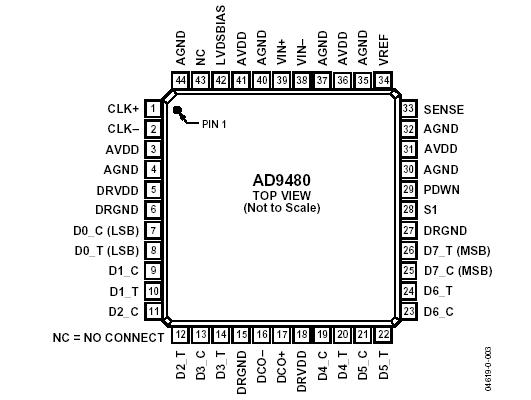

Pinout

Specifications

Parameter	Min Rating	Max Rating
ELECTRICAL AVDD (With respect to AGND) DRVDD (With respect to DRGND) AGND (With respect to DRGND) Digital I/O (With respect to DRGND) Analog Inputs (With respect to AGND)	−0.5 V −0.5 V −0.5 V −0.5 V −0.5 V	4.0V 4.0V 0.5V DRVDD + 0.5 V AVDD + 0.5 V
ENVIRONMENTAL Operating Temperature Junction Temperature Case Temperature Storage Temperature	−40°C	85°C 150°C 150°C 150°C

Description

The AD9480 is an 8-bit, monolithic analog-to-digital converter optimized for high speed and low power consumption. Small in size and easy to use, the product operates at a 250 MSPS conversion rate, with excellent linearity and dynamic performance over its full operating range.
To minimize system cost and power dissipation, the AD9480 includes an internal reference and track-and-hold circuit. The user only provides a 3.3 V power supply and a differential encode clock. No external reference or driver components are required for many applications.
The digital outputs are LVDS (ANSI 644) compatible with an option of twos complement or binary output format. The output data bits are provided in parallel fashion along with an LVDS output clock, which simplifies data capture.
Fabricated on an advanced BiCMOS process, the AD9480 is available in a 44-lead surface-mount package (TQFP) specified over the industrial temperature range (−40°C to +85°C).
