Purchase AD9481, In-stock AD9481 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9481
MFG: ADI
D/C: 09
Description: The AD9481 is an 8-bit, monolithic analog-to-digital converter (ADC) optimized for high speed and low ...
- Table of contents:
AD9481
-
Suppliers
DataSheet
General Description
AD9481 General Description
The AD9481 is an 8-bit, monolithic analog-to-digital converter (ADC) optimized for high speed and low power consumption. Small in size and easy to use, the product operates at a 250 MSPS conversion rate, with excellent linearity and dynamic performance over its full operating range.
To minimize system cost and power dissipation, the AD9481 includes an internal reference and track-and-hold circuit. The user only provides a 3.3 V power supply and a differential encode clock. No external reference or driver components are required for many applications.
The digital outputs are TTL/CMOS-compatible with an option of twos complement or binary output format. The output data bits are provided in an interleaved fashion along with output clocks that simplifies data capture.
The AD9481 is available in a Pb-free, 44-lead, surface-mount package (TQFP-44) specified over the industrial temperature range (−40°C to +85°C).
AD9481 Maximum Ratings
| Parameter | Min. Rating | Max. Rating |
| ELECTRICAL AVDD (With respect to AGND) DRVDD (With respect to DRGND) AGND (With respect to DRGND) Digital I/0 (With respect to DRGND) Analog Inputs (With respect to AGND) |
−0.5 V −0.5 V −0.5 V −0.5 V −0.5 V |
+4.0 V +4.0 V +0.5 V DRVDD + 0.5 V AVDD + 0.5 V |
| ENVIRONMENTAL Operating Temperature Junction Temperature Storage Temperature |
−40°C |
+85°C 150°C 150°C |
AD9481 Features
DNL = ±0.35 LSB
INL = ±0.26 LSB
Single 3.3 V supply operation (3.0 V to 3.6 V)
Power dissipation of 439 mW at 250 MSPS
1 V p-p analog input range
Internal 1.0 V reference
Single-ended or differential analog inputs
De-multiplexed CMOS outputs
Power-down mode
Clock duty cycle stabilizer
INL = ±0.26 LSB
Single 3.3 V supply operation (3.0 V to 3.6 V)
Power dissipation of 439 mW at 250 MSPS
1 V p-p analog input range
Internal 1.0 V reference
Single-ended or differential analog inputs
De-multiplexed CMOS outputs
Power-down mode
Clock duty cycle stabilizer
AD9481 Typical Application
Digital oscilloscopes
Instrumentation and measurement
Communications
Point-to-point radios
Digital predistortion loops
Instrumentation and measurement
Communications
Point-to-point radios
Digital predistortion loops

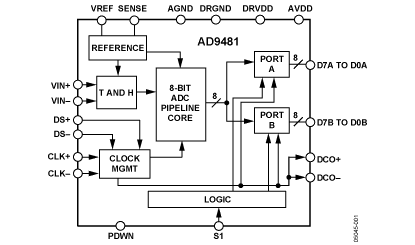

AD9481 Connection Diagram
AD9481
