AD9621

Features: 350 MHz Small Signal Bandwidth 130 MHz Large Signal BW (4 V p-p) High Slew Rate: 1200 V/ms Fast Settling: 11 ns to 0.01%/7 ns to 0.1% 63 V Supply OperationApplicationADC Input DriverDifferential AmplifiersIF/RF AmplifiersPulse AmplifiersProfessional VideoDAC Current-to-VoltageBaseband a...

product image

AD9621 Picture
See larger image
SeekIC No. : 004273213 Detail

AD9621: Features: 350 MHz Small Signal Bandwidth 130 MHz Large Signal BW (4 V p-p) High Slew Rate: 1200 V/ms Fast Settling: 11 ns to 0.01%/7 ns to 0.1% 63 V Supply OperationApplicationADC Input DriverDiffe...

AD9621 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9621
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

350 MHz Small Signal Bandwidth
130 MHz Large Signal BW (4 V p-p)
High Slew Rate: 1200 V/ms
Fast Settling: 11 ns to 0.01%/7 ns to 0.1%
63 V Supply Operation


Application

ADC Input Driver
Differential Amplifiers
IF/RF Amplifiers
Pulse Amplifiers
Professional Video
DAC Current-to-Voltage
Baseband and Video Communications
Pin Diode Receivers
Active Filters/lntegrators/Log Amps


Pinout

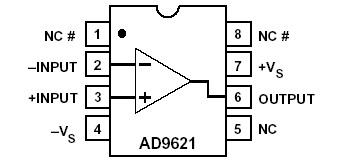

Connection Diagram


Specifications

Supply Voltages (±VS) . . . . . . . . . . . . . . . . . . . .. . . . . . ±6 V
Common-Mode Input Voltage . . . . . . . . . . . . . . .. . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . .. . . . . . . .6 V
Continuous Output Current2 . . . . . . . . . . . . . . . . . . . 90 mA
Operating Temperature Ranges
   AN, AQ, AR . . . . . . . . . . . . . . . . . . . . . . . .40°C to +85°C
   SQ . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 55°C to +125°C
Storage Temperature
   Ceramic . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
   Plastic . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +125°C
Junction Temperature
   Ceramic3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175°C
   Plastic3 . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . +150°C
Lead Soldering Temperature (1 minute)4 . . . . . . . . +220°C
NOTES
1Absolute maximum ratings are limiting values to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional operability is not necessarily implied. Exposure to absolute maximum rating conditions for an extended period of time may affect device reliability.
2Output is short-circuit protected; for maximum reliability, 90 mA continuous current should not be exceeded.
3Typical thermal impedances (part soldered onto board; no air flow):
     Ceramic DIP: JA = 100°C/W; JC = 30°C/W
     Plastic SOIC: JA = 125°C/W; JC = 45°C/W
     Plastic DIP: JA = 90°C/W; JC = 45°C/W
4Temperature shown is for surface mount devices, mounted by vapor phase soldering. Throughhole devices (ceramic and plastic DIPs) can be soldered at +300°C for 10 seconds.


Description

The AD9621 is one of a family of very high speed and wide bandwidth amplifiers utilizing a voltage feedback architecture. These amplifiers define a new level of performance for voltage feedback amplifiers, especially in the categories of large signal bandwidth, slew rate, settling, and low noise.

Proprietary design architectures have resulted in an amplifier family that combines the most attractive attributes of both current feedback and voltage feedback amplifiers. The AD9621 exhibits extraordinarily accurate and fast pulse response characteristics (7 ns settling to 0.1%) as well as extremely wide small and large signal bandwidth previously found only in current feedback amplifiers. When combined with balanced high impedance inputs and low input noise current more common to voltage feedback architectures, the AD9621 offers performance not previously available in a monolithic operational amplifier.

Other members of the AD962X amplifier family are the AD9622 (G = +2), AD9623 (G = +4), and the AD9624 (G = +6). A separate data sheet is available from Analog Devices for each model. Each generic device has been designed for a different minimum stable gain setting, allowing users flexibility in optimizing system performance. Dynamic performance specifications such as slew rate, settling time, and distortion vary from model to model. The table below summarizes key performance attributes for the AD962X family and can be used as a selection guide.

The AD9621 is offered in industrial and military temperature ranges. Industrial versions are available in plastic DIP, SOIC, and cerdip; MIL versions are packaged in cerdips.
