Part Number: AD9701
Description: The AD9701 is a high speed, 8-bit digital-to-analog converter with fully integrated composite video functions. High ...
- Table of contents:
AD9701
-
Suppliers
DataSheet
General Description
AD9701 General Description
The AD9701 is a high speed, 8-bit digital-to-analog converter with fully integrated composite video functions. High speed ECL input registers provide synchronous operation of data and
control functions up to 250 MSPS.
The AD9701 incorporates onboard control functions including horizontal sync, blanking, reference white level and a 10% bright signal for highlighting. The setup level is also adjustable
from 0 IRE units to 20 IRE units through the control pin. An internal voltage reference allows the AD9701 to operate as a stand-alone video reconstruction DAC.
The AD9701 is available as an industrial temperature range device, 25°C to +85°C, and as an extended temperature range
AD9701 Maximum Ratings
Supply Voltage (VS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Digital Input Voltages (Including STROBE, SYNC,
BLANKING, 10% BRIGHT and REFERENCE
WHITE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 0 V to VS
Analog Output Current . . . . . . . . . . . . . . . . . . . . . . . . 37 mA
Power Dissipation (+25°C Free Air) 2 . . . . . . . . . . . . 780 mW
Operating Temperature Range
AD9701BQ . . . . . . . . . . . . . . . . . . . . . . . . 25°C to +85°C
AD9701SQ/SE . . . . . . . . . . . . . . . . . . . . . 55°C to +125°C
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . +175°C
Lead Soldering Temperature (10 sec) . . . . . . . . . . . +300°C
AD9701 Features
250 MSPS Update Rate
Low Glitch Impulse
Complete Composite Functions
Internal Voltage Reference
Single 5.2 V Supply
Low Glitch Impulse
Complete Composite Functions
Internal Voltage Reference
Single 5.2 V Supply
AD9701 Typical Application
Raster Scan Displays
Color Graphics
Automated Test Equipment
TV Video Reconstruction
Color Graphics
Automated Test Equipment
TV Video Reconstruction

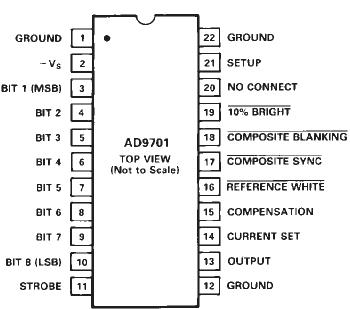

AD9701 Connection Diagram
AD9701
