AD9804 General Description


The AD9804 is a complete analog signal processor for CCD applications. It features an 18 MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9804's signal chain consists of an input clamp, correlated double sampler (CDS), digitally controlled VGA, black level clamp, and a 10-bit A/D converter. The internal VGA gain register is programmed through a 3-wire serial digital interface.

AD9804 Maximum Ratings


Parameter
 With RespectTo Min Max Unit
AVDD
DVDD
DRVDD
Digital Outputs
SHP, SHD, DATACLK
CLPOB, CLPDM, PBLK
SCK, SL, SDATA
VRT, VRB, CMLEVEL
BYP14, CCDIN
Junction Temperature
Lead Temperature
(10 sec)		 AVSS
DVSS
DRVS
DRVS
DVSS
DVSS
DVSS
AVSS
AVSS		 0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3		 +3.9
+3.9
+3.9
DRVDD + 0.3
DVDD + 0.3
DVDD + 0.3
DVDD + 0.3
AVDD + 0.3
AVDD + 0.3
150
300		 V
V
V
V
V
V
V
V
V
°C
°C

AD9804 Features

18 MSPS Correlated Double Sampler (CDS)
6 dB to 40 dB 10-Bit Variable Gain Amplifier (VGA)
Low Noise Clamp Circuits
Preblanking Function
10-Bit 18 MSPS A/D Converter
3-Wire Serial Digital Interface
3 V Single Supply Operation
Low Power CMOS
48-Lead LQFP Package

AD9804 Typical Application

PC Cameras
Digital Still Cameras

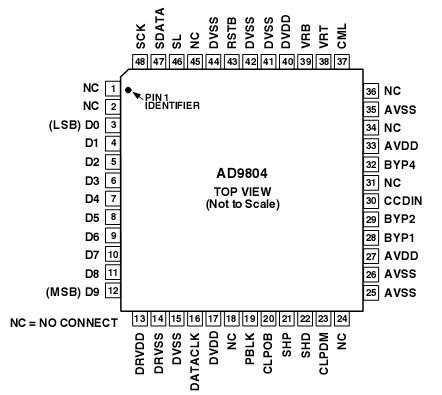

AD9804 Connection Diagram

AD9804 Connection Diagram

AD9804 datasheet

AD9804
PDF/DataSheet Download

Find AD9804 Suppliers
