AD9816

Features: 12-Bit 6 MSPS A/D ConverterNo Missing Codes Guaranteed3-Channel or 1-Channel OperationCorrelated Double Sampling8-Bit Programmable Gain8-Bit Offset AdjustmentPGA Output MonitorInput Clamp CircuitryInternal Voltage Reference3-Wire Serial Interface+3.3 V/+5 V Digital Output Compatibility44...

product image

AD9816 Picture
See larger image
SeekIC No. : 004273473 Detail

AD9816: Features: 12-Bit 6 MSPS A/D ConverterNo Missing Codes Guaranteed3-Channel or 1-Channel OperationCorrelated Double Sampling8-Bit Programmable Gain8-Bit Offset AdjustmentPGA Output MonitorInput Clamp ...

AD9816 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9816
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

12-Bit 6 MSPS A/D Converter
No Missing Codes Guaranteed
3-Channel or 1-Channel Operation
Correlated Double Sampling
8-Bit Programmable Gain
8-Bit Offset Adjustment
PGA Output Monitor
Input Clamp Circuitry
Internal Voltage Reference
3-Wire Serial Interface
+3.3 V/+5 V Digital Output Compatibility
44-Lead MQFP Package
Low Power CMOS: 420 mW Typ


Pinout

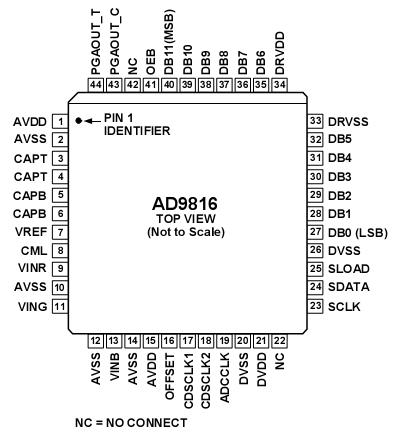

Connection Diagram


Specifications

Respect
With Parameter To 		Min Max Unit
VIN, VREF
PGA Outputs
Clock Inputs
AVDD
DVDD
DRVDD
AVSS
Digital Outputs
Digital Inputs
Junction Temperature
Storage Temperature
Lead Temperature
(10 sec)		 AVSS
AVSS
DVSS
AVSS
DVSS
DRVSS
DVSS
DRVSS
DVSS

0.3
0.3
0.3
0.5
0.5
0.5
0.3
0.3
0.3

65

AVDD + 0.3
AVDD + 0.3
DVDD + 0.3
+6.5
+6.5
+6.5
+0.3
DRVDD + 0.3
DVDD + 0.3
+150
+150

+300

V
V
V
V
V
V
V
V
V
C
C

C




Description

The AD9816 is a complete analog signal processor for CCD and CIS applications. Included is all the necessary circuitry to perform three-channel conditioning and sampling for a variety of imaging applications.

The signal chain consists of an input clamp, correlated double sampler (CDS), offset adjust DAC, programmable gain ampli-fier and a 12-bit A/D converter.  The CDS and input clamp may be disabled for CIS applications.

The internal registers are programmed using a 3-wire serial interface and provide adjustment of the gain, offset and operat-ing mode.

The AD9816 operates from a +5 V supply, typically consumes 420 mW of power and is packaged in a 44-lead MQFP.
