Features: 14-Bit 30 MSPS A/D Converter30 MSPS Correlated Double Sampler (CDS)4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA ) (R)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)Low Noise Clamp CircuitsAnalog Preblanking FunctionAuxiliary Inputs with VGA and Input Clamp3-Wire Serial Digital Interface...
AD9824: Features: 14-Bit 30 MSPS A/D Converter30 MSPS Correlated Double Sampler (CDS)4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA ) (R)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)Low Noise Clamp Circuit...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parametert | Min | Typ | Max | Uni |
POWER CONSUMPTION | 120 | mW | ||
MAXIMUM CLOCK RATE | 30 | MHz | ||
INPUT BUFFER Gain Max Input Range |
1.0 | 0 | dB V p-p | |
VGA Max Output Range Gain Control Resolution Gain (Selected Using VGA Gain Register) Min Gain Max Gain |
2.0 |
1023 0 |
V p-p dB |
Aux Inputs | Yes |
Input Range (V p-p) | 1V p-p |
PGA Range (dB) | 0 to 34 |
Pixel Gain Amp | X |
Power Dissipation (mW) | 153mW |
Resolution (Bits) | 14bit |
Sample Rate (MSPS) | 30MSPS |
SNR (dB) | 78dB |

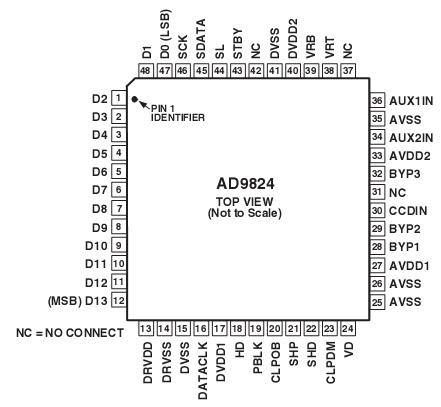

The AD9824 is a complete analog signal processor for CCD applications. It features a 30 MHz single-channel architecture designed to sample and condition the outputs of interlaced and
progressive scan area CCD arrays. The AD9824's signal chain consists of an input clamp, a correlated double sampler (CDS), PxGA, a digitally controlled VGA, a black level clamp, and a
14-bit A/D converter. Additional input modes are also pro-vided for processing analog video signals.
The internal registers are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment, black level adjustment, input configuration, and power-down modes.The AD9824 operates from a single 3 V power supply, typically dissipates 153 mW, and is packaged in a 48-lead LFCSP.
