Part Number: AD9830
MFG: ADI
D/C: 09
Description: This DDS device is a numerically controlled oscillator em-ploying a phase accumulator, a sine look-up table and a 10...
- Table of contents:
AD9830
-
Suppliers
DataSheet
General Description
AD9830 General Description
This DDS device is a numerically controlled oscillator em-ploying a phase accumulator, a sine look-up table and a 10-bit D/A converter integrated on a single CMOS chip.Modulation capabilities are provided for phase modulation and frequency modulation.Clock rates up to 50 MHz are supported. Frequency accu-racy can be controlled to one part in 4 billion. Modulation
is effected by loading registers through the parallel micro-processor interface.
A power-down pin allows external control of a power-down mode. The part is available in a 48-pin TQFP package.
AD9830 Maximum Ratings
(TA = +25°C unless otherwise noted)
AVDD to AGND . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . .0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to DVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . +150°C
TQFP JA Thermal Impedance . . . . . . . . . . . . . . . .75°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
AD9830 Features
+5 V Power Supply
50 MHz Speed
On-Chip SINE Look-Up Table
On-Chip 10-Bit DAC
Parallel Loading
Power-Down Option
72 dB SFDR
250 mW Power Consumption
48-Pin TQFP
50 MHz Speed
On-Chip SINE Look-Up Table
On-Chip 10-Bit DAC
Parallel Loading
Power-Down Option
72 dB SFDR
250 mW Power Consumption
48-Pin TQFP
AD9830 Typical Application
DDS Tuning
Digital Demodulation
Digital Demodulation

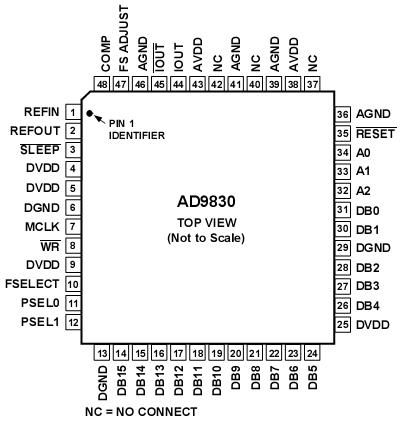

AD9830 Connection Diagram
AD9830
PDF/DataSheet Download
- Datasheet: AD9830
- File Size: 223980 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
