Purchase AD9835, In-stock AD9835 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9835
MFG: ADI
D/C: 09
Description: The AD9835 is a numerically controlled oscillator employing a phase accumulator, a COS Look-Up Table and a 10-bit D/...
- Table of contents:
AD9835
-
Suppliers
DataSheet
General Description
AD9835 General Description
The AD9835 is a numerically controlled oscillator employing a phase accumulator, a COS Look-Up Table and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation.
Clock rates up to 50 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is ef-fected by loading registers through the serial interface. A power-down bit allows the user to power down the AD9835 when it is not in use, the power consumption being reduced to 1.75mW.The part is available in a 16-lead TSSOP package.
AD9835 Maximum Ratings
(TA = +25 unless otherwise noted)
AVDD to AGND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . .0.3 V to +0.3 V
AGND to DGND. . . . . . . . . . . . . . . . . . . . . .0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to DVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature Range . . . . . . . . . . .65 to +150
Maximum Junction Temperature . . . . . . . . . . . . . . . .+150
TSSOP JA Thermal Impedance . . . . . . . . . . . . . . . 158 /W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .+215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . .+220
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 4500 V
AVDD to AGND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD . . . . . . . . . . . . . . . . . . . . .0.3 V to +0.3 V
AGND to DGND. . . . . . . . . . . . . . . . . . . . . .0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to DVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature Range . . . . . . . . . . .65 to +150
Maximum Junction Temperature . . . . . . . . . . . . . . . .+150
TSSOP JA Thermal Impedance . . . . . . . . . . . . . . . 158 /W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . .+215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . .+220
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 4500 V
AD9835 Features
5 V Power Supply
50 MHz Speed
On-Chip COS Look-Up Table
On-Chip 10-Bit DAC
Serial Loading
Power-Down Option
200 mW Power Consumption
16-Lead TSSOP
50 MHz Speed
On-Chip COS Look-Up Table
On-Chip 10-Bit DAC
Serial Loading
Power-Down Option
200 mW Power Consumption
16-Lead TSSOP
AD9835 Typical Application
DDS Tuning
Digital Demodulation
Digital Demodulation

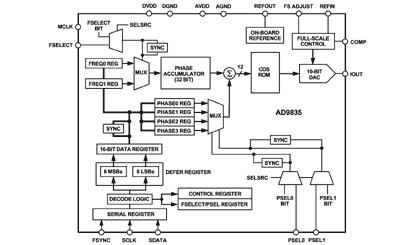

AD9835 Connection Diagram
AD9835
PDF/DataSheet Download
- Datasheet: AD9835
- File Size: 163949 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
