MFG:AD Package Cooled:05+ D/C:QFP
MFG: AD
Package Cooled: 05+
D/C: QFP
Description: The AD9841A and AD9842A are complete analog signal proces-sors for CCD applications. Both products feature a 20MHz s...
The AD9841A and AD9842A are complete analog signal proces-sors for CCD applications. Both products feature a 20MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays.
The AD9841A/AD9842A's signal chain consists of an input clamp, correlated double sampler (CDS), Pixel Gain Amplifier (PxGA), digitally controlled variable gain amplifier (VGA), black level clamp, and A/D converter. The AD9841A offers 10-bit ADC resolution, while the AD9842A contains a true 12-bit ADC. Additional input modes are provided for processing analog video signals.
The internal registers are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment,black level adjustment, input configuration, and power-down modes.The AD9841A and AD9842A operate from a single 3 V power supply, typically dissipate 78 mW, and are packaged in a 48-lead LQFP.

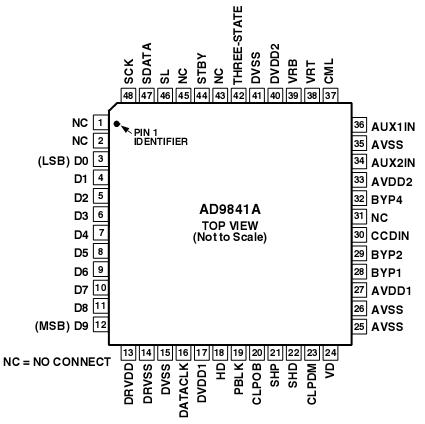

| Respect |
WithParameterTo |
Min | Max | Unit |
| AVDD1, AVDD2 DVDD1, DVDD2 DRVDD Digital Outputs SHP, SHD, DATACLK CLPOB, CLPDM, PBLK SCK, SL, SDATA VRT, VRB, CMLEVEL BYP1-4, CCDIN Junction Temperature Lead Temperature (10 sec) |
AVSS DVSS DRVSS DRVSS DVSS DVSS DVSS AVSS AVSS |
0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 |
+3.9 +3.9 +3.9 DRVDD + 0.3 DVDD + 0.3 DVDD + 0.3 DVDD + 0.3 AVDD + 0.3 AVDD + 0.3 150 300 |
V V V V V V V V V °C °C |
AD9842A
PDF/DataSheet Download
IC CCD SIGNAL PROC 10BIT 48LQFP
IC CCD SIGNAL PROC 10BIT 48LQFP
IC CCD SIGNAL PROC 10BIT 48-LQFP
IC CCD SIGNAL PROC 10BIT 48-LQFP
The AD9841A and AD9842A are complete analog signal proces-sors for CCD applications. Both products feature a 20MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9841A/AD984...
IC CCD SIGNAL PROC 10BIT 48LQFP
Price: 79.5-83.5 USD
