Features: 1 GSPS internal clock speed Up to 2 GHz input clock (selectable divide-by-2) Integrated 10-bit D/A converter Phase noise < 145 dBc/Hz @ 1 kHz offset Output frequency = 100 MHz (DAC output) 32-bit programmable frequency register Simplified 8-bit parallel and SPI(R) serial control inter...
AD9858: Features: 1 GSPS internal clock speed Up to 2 GHz input clock (selectable divide-by-2) Integrated 10-bit D/A converter Phase noise < 145 dBc/Hz @ 1 kHz offset Output frequency = 100 MHz (DAC outp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Compliance Range (V) | 3.8V |
FS Iout (mA nom) | 40mA |
I Supply total (max) | n/a |
I/O Interface | Parallel,Serial |
Master fclk | 1000MHz |
Nominal Supply (V) | Multi(+3.3, +5) |
On-Board Comparator | No |
REFCLK Multiplier | No |
Resolution (Bits) | 10bit |
Parameter | Rating |
AVDD DVDD CPVDD Digital Input Voltage Digital Output Current Storage Temperature Operating Temperature JA EPAD Soldered |
4 V 4 V 6 V 0.7 V to +VDD 5 mA 65°C to +150°C 40°C to +85°C 25°C/W |
I V |
100% Production Tested. Parameter is a typical value only. |

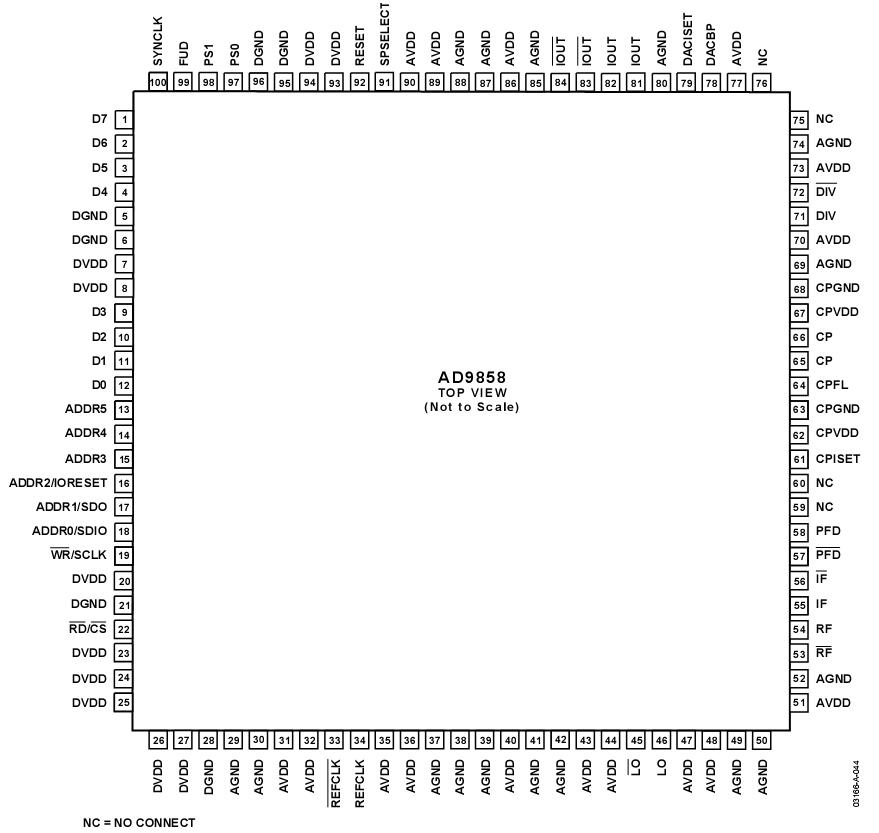

The AD9858 is a direct digital synthesizer (DDS) featuring a 10-bit DAC operating up to 1GSPS. The AD9858 uses advanced DDS technology, coupled with an internal high speed, high performance D/A converter to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sine wave at up to 400+ MHz.
The AD9858 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9858
via parallel (8-bit) or serial loading formats. The AD9858 contains an integrated charge pump (CP) and phase frequency detector (PFD) for synthesis applications requiring the combination of a high speed DDS along with phase-locked loop (PLL) functions. An analog mixer is also provided on-chip for applications requiring the combination of a DDS, PLL, and mixer, such as frequency translation loops, tuners, and so on. The AD9858 also features a divide-by-2 on the clock input, allowing the external clock to be as high as 2 GHz. The AD9858 is specified to operate over the extended industrial temperature range of 40°C to +85°C.
