Part Number: AD9868



MFG: ADI



D/C: 09

Description: The AD9868 is a mixed-signal front-end (MxFE?) IC for transceiver applications requiring Tx path and Rx path functionality with data rates...


Urgent Purchase

AD9868 General Description


The AD9868 is a mixed-signal front-end (MxFE?) IC for transceiver applications requiring Tx path and Rx path functionality with data rates up to 80 MSPS. A lower cost, pin-compatible version of the

AD9868 Maximum Ratings

Resolution (Bits) 10bit
T-Put Rate 80MSPS
# Chan 1
Supply V Multi(+3.3Anlg, +3.3Dig)
Sample Rate 80MSPS
ADC Bits x #ADCs-Speed 10x1-33 MHz,12x1-33 MHz,7x2-16.5 MHz
DAC Bits x #DACs-ClkSpeed 12x1-232 MHz
Pkg Type CSP
Primary Application Broadband Wireline, Home Networking

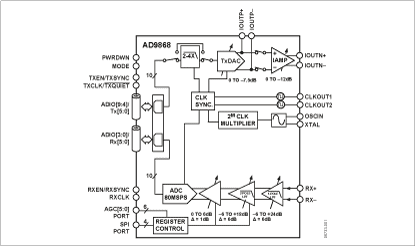

AD9868 Connection Diagram

AD9868 Connection Diagram
