Part Number: AD9887



MFG: AD

Package Cooled: QFP

D/C: 08+

Description: The AD9887 offers designers the flexibility of a dual analog and digital interface for flat panel displays (FPDs) on a ...


Urgent Purchase

AD9887 General Description


The AD9887 offers designers the flexibility of a dual analog and digital interface for flat panel displays (FPDs) on a single chip. Both interfaces are optimized for excellent image quality supporting display resolutions up to SXGA (1280 × 1024 at 75 Hz). Either the analog or the digital interface can be selected by the user.

AD9887 Maximum Ratings

VD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.6 V
VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3.6 V
Analog Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . .  VD to 0.0 V
VREF IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     VD to 0.0 V
Digital Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . .  5 V to 0.0 V
Digital Output Current  . . . . . . . . . . . . . . . . . . . . . . . .   20 mA
Operating Temperature  . . . . . . . . . . . . . . .25°C to +85°C
Storage Temperature . . . . . . . . . . . . . . . .65°C to +150°C
Maximum Junction Temperature  . . . . . . . . . . . . . . . .   150°C
Maximum Case Temperature  . . . . . . . . . . . . . . . . . . .  150°C

AD9887 Features

Analog Interface
140 MSPS Maximum Conversion Rate
330 MHz Analog Bandwidth
0.5 V to 1.0 V Analog Input Range
500 ps p-p PLL Clock Jitter at 140 MSPS
3.3 V Power Supply
Full Sync Processing
Midscale Clamp
4:2:2 Output Format Mode
Digital (DVI 1.0 Compatible) Interface
112 MHz Operation (1 Pixel/Clock Mode)
High Skew Tolerance of One Full Input Clock
Sync Detect for "Hot Plugging"

AD9887 Typical Application

RGB Graphics Processing
LCD Monitors and Projectors
Plasma Display Panels
Scan Converters
Micro Displays
Digital TV

AD9887 Connection Diagram

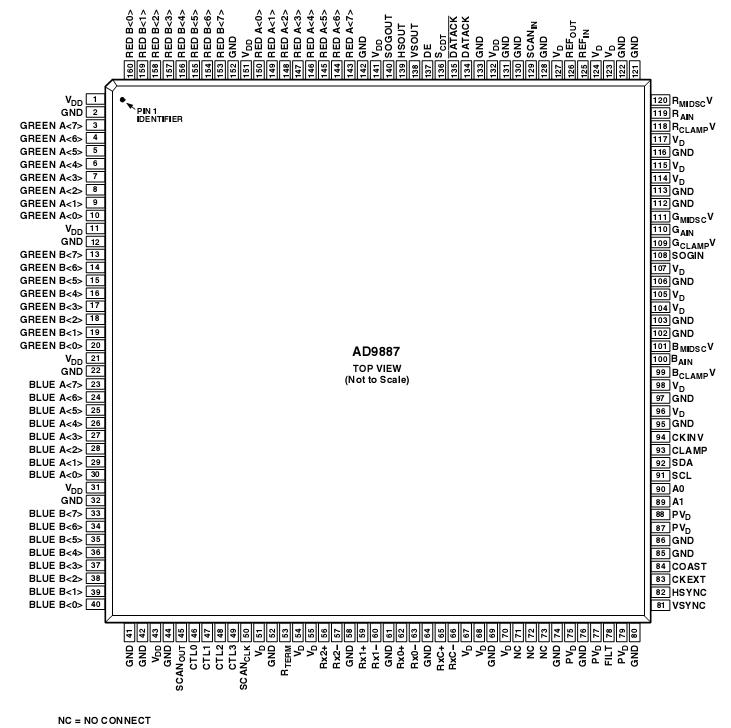

AD9887 Connection Diagram
