AD9889

Features: ·HDMI/DVI transmitter compatible with HDMI 1.1 and·HDCP 1.1·Single 1.8 V power supply·Video/audio inputs are 3.3 V tolerant·80-lead, Pb-free LQFP·Digital video·80 MHz operation supports all video formats from 480i to·1080i and 720p·Programmable 2-way color space converter·Supports RGB, Y...

product image

AD9889 Picture
See larger image
SeekIC No. : 004273675 Detail

AD9889: Features: ·HDMI/DVI transmitter compatible with HDMI 1.1 and·HDCP 1.1·Single 1.8 V power supply·Video/audio inputs are 3.3 V tolerant·80-lead, Pb-free LQFP·Digital video·80 MHz operation supports al...

AD9889 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9889
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HDMI/DVI transmitter compatible with HDMI 1.1 and
·HDCP 1.1
·Single 1.8 V power supply
·Video/audio inputs are 3.3 V tolerant
·80-lead, Pb-free LQFP
·Digital video
·80 MHz operation supports all video formats from 480i to
·1080i and 720p
·Programmable 2-way color space converter
·Supports RGB, YCbCr, DDR, ITU656 formats
·Auto input video format detection
·Digital audio
·Supports standard S/PDIF for stereo or compressed audio
·up to 192 kHz
·8-channel LPCM I2S audio up to 192 kHz
·Special features for easy system design
·On-chip MPU to perform HDCP operations
·On-chip I2C master to handle EDID reading
·5 V tolerant I2C and MPD I/Os, no extra device needed
·No audio master clock needed for S/PDIF support


Application

·DVD players and recorders
·Digital set-top boxes
·AV receivers
·Digital cameras and camcorders


Pinout

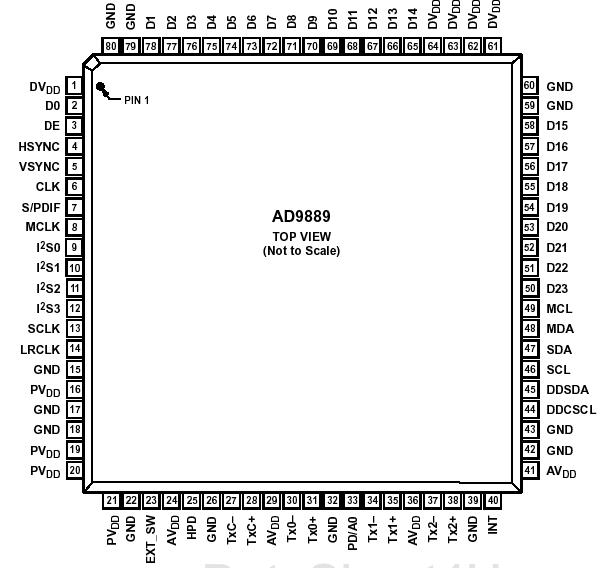

Connection Diagram


Specifications

Parameter Rating
Digital Inputs
Digital Output Current
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Maximum Case Temperature		 5 V to 0.0 V
20 mA
−40°C to +85°C
−65°C to +150°C
150°C
150°C



Description

The AD9889 is an 80 MHz, high-definition multimedia interface (HDMITM 1.1) transmitter. It supports HDTV formats up to 1080i and 720p, and graphic resolutions up to XGA (1024 × 768 @ 75 Hz). With the inclusion of HDCP, the AD9889 allows the secure transmission of protected content as specified by the HDCP 1.1 protocol. The AD9889 supports both S/PDIF and 8-channel I2S audio. Its high fidelity 8-channel I2S can transmit either stereo or 7.1 surround audio at 192 kHz. The S/PDIF can carry stereo LPCM (linear pulse code modulation) audio or compressed audio including Dolby® Digital, DTS®, and THX®.

The AD9889 helps to reduce system design complexity and cost by incorporating such features as HDCP master, I2C master for EDID reading, a single 1.8 V power supply, and 5 V tolerance on I2C and hot plug detect pins. Fabricated in an advanced CMOS process, the AD9889 is provided in a space-saving, 80-lead, surface-mount, Pb-free plastic LQFP and is specified over the 0°C to 70°C temperature range.
