Purchase AD9923A, In-stock AD9923A From SeekIC.

MFG:AD  Package Cooled:BGA  D/C:07+

AD9923A Product Image

AD9 Series Datasheet download

Five Points

Part Number: AD9923A



MFG: AD

Package Cooled: BGA

D/C: 07+

Description: The AD9923A is a complete 36 MHz front-end solution for digital still cameras and other CCD imaging applications. Similar to the AD9923 pr...


Urgent Purchase

AD9923A General Description


The AD9923A is a complete 36 MHz front-end solution for digital still cameras and other CCD imaging applications. Similar to the AD9923 product, the AD9923A includes the analog front end (AFE), a

AD9923A Maximum Ratings

Resolution (Bits) 12bit
Input Range (V p-p) 1V p-p
Sample Rate (MSPS) 36MSPS
PGA Range (dB) 6 to 42

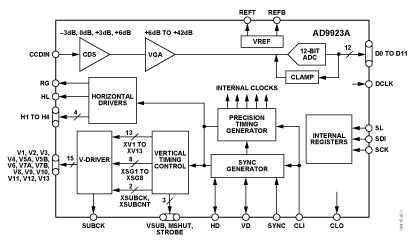

AD9923A Connection Diagram

AD9923A Connection Diagram
