AD9942

Features: 40 MHz correlated double sampler (CDS) 0 dB to 18 dB, 9-bit variable gain amplifier (VGA) 40 MSPS analog-to-digital converter (ADC) Black level clamp with variable level control Complete on-chip timing driver Precision Timing Core with <550 ps resolution On-chip 3 V horizontal and RG...

product image

AD9942 Picture
See larger image
SeekIC No. : 004273715 Detail

AD9942: Features: 40 MHz correlated double sampler (CDS) 0 dB to 18 dB, 9-bit variable gain amplifier (VGA) 40 MSPS analog-to-digital converter (ADC) Black level clamp with variable level control Complete ...

AD9942 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9942
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

40 MHz correlated double sampler (CDS)
0 dB to 18 dB, 9-bit variable gain amplifier (VGA)
40 MSPS analog-to-digital converter (ADC)
Black level clamp with variable level control
Complete on-chip timing driver
Precision Timing Core with <550 ps resolution
On-chip 3 V horizontal and RG drivers
4-phase H-clock mode
100-lead, 9 mm * 9 mm, CSP_BGA package


Application

Signal processor for dual-channel CCD outputs
Digital still cameras
Digital video cameras
High speed digital imaging applications


Pinout

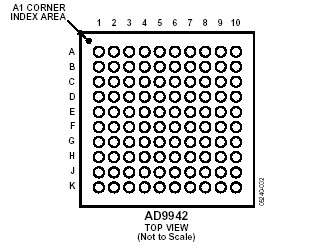

Connection Diagram


Specifications

Parameter Rating
AVDD_X and TCVDD_X to AVSS_X
HVDD_X and RGVDD_X to
   HVSS_X and RGVSS_X
DVDD_X and DRVDD_X to
   DVSS_X and DRVSS_X
Any VSS_X to Any VSS_X
Digital Outputs to DRVSS_X
SCK_X, SL_X, and SDATA_X to
   DVSS_X
RG_X to RGVSS_X
H1X to H4X to HVSS_X
REFT_X, REFB_X, and CCDIN_X to
   AVSS_X
Junction Temperature
Lead Temperature (10 sec)		 3−0.3 V to +3.9 V
−0.3 V to +3.9 V

−0.3 V to +3.9 V

−0.3 V to +0.3 V
−0.3 V to DRVDD + 0.3 V
−0.3 V to DVDD + 0.3 V

−0.3 V to RGVDD + 0.3 V
−0.3 V to HVDD + 0.3 V
−0.3 V to AVDD + 0.3 V

150°C
300°C



Description

The AD9942 is a highly integrated dual-channel CCD signal processor for digital still camera applications. Each channel is specified at pixel rates of up to 40 MHz. The AD9942 consists of a complete analog front end with analog-to-digital conversion, combined with a programmable timing driver. The Precision Timing Core allows high speed clocks to be adjusted with 550 ps resolution.

The analog front end uses black level clamping and includes a VGA, a 40 MSPS ADC, and a CDS. The timing driver provides the high speed CCD clock drivers for RG_A, RG_B, and the H1A to H4A and H1B to H4B outputs. The 6-wire serial interface is used to program the AD9942.

Available in a space-saving, 9 mm × 9 mm, CSP_BGA package, the AD9942 is specified over an operating temperature range of −25°C to +85°C.
