Purchase AD9978, In-stock AD9978 From SeekIC.
Part Number: AD9978
Description: The AD9978 is a highly integrated, dual-channel CCD signal processor for high speed digital video camera applications. Each channel is spe...
- Table of contents:
AD9978
-
Suppliers
DataSheet
General Description
AD9978 General Description
The AD9978 is a highly integrated, dual-channel CCD signal processor for high speed digital video camera applications. Each channel is specified at pixel rates of up to 65 MHz and consists of a
AD9978 Maximum Ratings
| Resolution (Bits) | 14bit |
| Input Range (V p-p) | 1.4V p-p |
| Sample Rate (MSPS) | 55MSPS |
| Power Dissipation (mW) | 190mW |

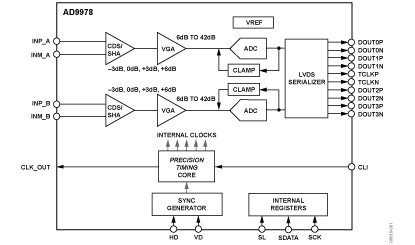

AD9978 Connection Diagram
