ADA10000

Features:

• High Linearity
: +15 dBm IIP3 (+8 V supply)
• Low Distortion
• Low Noise Figure: 2.0 dB
• 15 dB Gain
• Single +4 V to +9 V Supply
• Wide Bandwidth: 50 MHz to 1 GHz
• SOIC-16 and SOT-89 Package Options

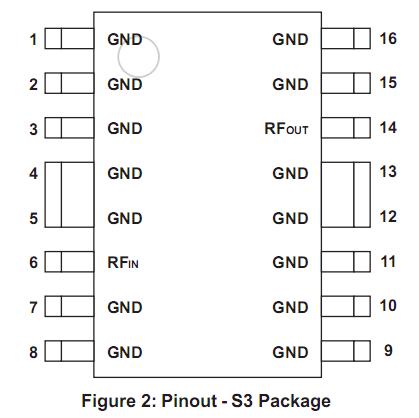

Pinout






Specifications

IIP2 (dBm) Min	+29
IIP2 (dBm) Typ	+34
IIP3 (dBm) Min	+13
IIP3 (dBm) Typ	+15
Gain (dB) Min	14
Gain (dB) Typ	15
Noise Figure (dB) Typ	2.0
Noise Figure (dB) Max	3.5

Description

The ADA10000 is a monolithic IC intended for use in applications requiring high linearity, such as Cellular Telephone Base Station Driver Amplifiers, CATV Fiber Receiver and Distribution Amplifiers, and CATV Drop Amplifiers. Offered in both a modified 16 lead SOIC package and SOT-89 package, it is well suited for use in amplifiers where small size, reduced component count, and high reliability are important.
