Part Number: ADC08061

Package Cooled: SOP

D/C: N/A

Description: Using a patented multi-step A/D conversion technique, the 8-bit ADC08061 and ADC08062 CMOS ADCs offer 500 ns (typ) conv...

ADC08061 General Description

Using a patented multi-step A/D conversion technique, the 8-bit ADC08061 and ADC08062 CMOS ADCs offer 500 ns (typ) conversion time, internal sample-and-hold (S/H), and dissipate only 125 mW of power. The ADC08062 has a two-channel multiplexer. The ADC08061/2 family performs an 8-bit conversion using a 2-bit voltage estimator that generates the 2 MSBs and two low-resolution (3-bit) flashes that generate the 6 LSBs.

Input track-and-hold circuitry eliminates the need for an external sample-and-hold. The ADC08061/2 family performs accurate conversions of full-scale input signals that have a frequency range of DC to 300 kHz (full-power bandwidth) without need of an external S/H. The digital interface has been designed to ease connection to microprocessors and allows the parts to be I/O or memory mapped.

ADC08061 Maximum Ratings

Supply Voltage (V+)                                                                          6V
Logic Control Inputs                                                −0.3V to V⁺+ 0.3V
Voltage at Other lInputs and Outputs                     −0.3V to V⁺+ 0.3V
Input Current at Any Pin (Note 3)                                                5 mA
Package Input Current (Note 3)                                                 20 mA
Power Dissipation (Note 4)
J Package                                                                                875 mW
N Package                                                                               875 mW
WM Package                                                                          875 mW
Storage Temperature                                                −65˚C to +150˚C

ADC08061 Features

1 or 2 input channels
No external clock required
Analog input voltage range from GND to V+
Overflow output available for cascading (ADC08061)
ADC08061 pin-compatible with the industry standard ADC0820

ADC08061 Typical Application

Mobile telecommunications
Hard disk drives
Instrumentation
High-speed data acquisition systems

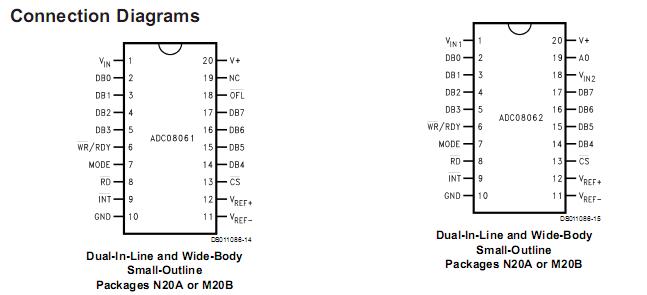

ADC08061 Connection Diagram

ADC08061 datasheet

ADC08061
PDF/DataSheet Download

Datasheet: ADC08061
File Size: 314804 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download
