Part Number: ADC081000









Description: The ADC081000 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolu...


Urgent Purchase

ADC081000 General Description


The ADC081000 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 1.6 GSPS while consuming a typical 1.4 Watts from a single 1.9 Volt supply at 1.0 GSPS. This device is guaranteed to have no missing codes over the full operating temperature range. The unique folding/interpolating architecture, the fully differential comparator design and the innovative design of the internal
sample-and-hold amplifier enable a very flat SINAD/ENOB response beyond Nyquist, producing a high 7.5 ENOB with a 100 MHz input signal and a 1 GHz sample rate. Output formatting is offset binary coding with LVDS digital outputs compliant with IEEE 1596.3-1996, with the exception of a reduced common mode voltage of 0.8V.

The converter has a 1:2 demultiplexer that feeds two LVDS buses and reduces the output data rate on each bus to half the sampling rate. The data on these buses are interleaved in time to provide a 500 MSPS output rate per bus and a combined output rate of 1 GSPS. Setting the PD (Power Down) pin high places the converter into an inactive power down state, where it typically consumes less than 5 mW. The ADC081000 is available in a 128-lead exposed pad LQFP and operates over the industrial (-40oC TA +85oC) temperature range.

ADC081000 Features

Internal Sample-and-Hold
Single +1.9V ±0.1V Operation
Adjustable Output Levels
Guaranteed No Missing Codes
Low Power Standby Mode

ADC081000 Typical Application

Direct RF Down Conversion
Digital Oscilloscopes
RADAR / SONAR / ECM
Satellite Set-top boxes
WLANs
Communications Systems
Test Instrumentation

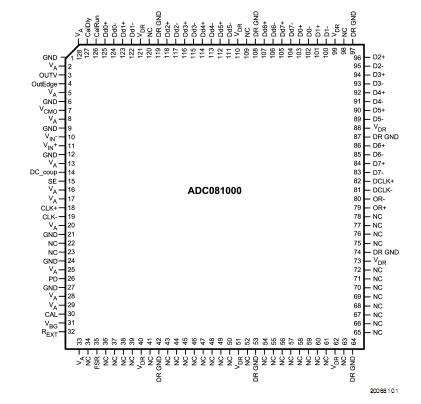

ADC081000 Connection Diagram

ADC081000 Connection Diagram

ADC081000 datasheet
