Part Number: ADC0817

MFG: NS

Package Cooled: 200

D/C: 98+

Description: The ADC0816, ADC0817 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, ...

ADC0817 General Description

The ADC0816, ADC0817 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 16-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 16-channel multiplexer can directly access any one of 16-single-ended analog signals, and provides the logic for additional channel expansion. Signal conditioning of any analog input signal is eased by direct access to the multiplexer output, and to the input of the 8-bit A/D converter.

The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE® outputs. The design of the ADC0816, ADC0817 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0816, ADC0817 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For similar performance in an 8-channel, 28-pin, 8-bit A/D converter, see the ADC0808, ADC0809 data sheet. (See AN-258 for more information.)

ADC0817 Maximum Ratings

Supply Voltage (V_CC) (Note 3)                                                               6.5V
Voltage at Any Pin                                                       −0.3V to (V_CC+0.3V)
Except Control Inputs
Voltage at Control Inputs                                                         −0.3V to 15V
(START, OE, CLOCK, ALE, EXPANSION CONTROL,
ADD A, ADD B, ADD C, ADD D)
Storage Temperature Range                                             −65˚C to + 150˚C
Package Dissipation at TA = 25˚C                                                   875 mW

ADC0817 Features

Easy interface to all microprocessors
Operates ratiometrically or with 5 VDC or analog span adjusted voltage reference
16-channel multiplexer with latched control logic
Outputs meet TTL voltage level specifications
0V to 5V analog input voltage range with single 5V supply
No zero or full-scale adjust required
Standard hermetic or molded 40-pin DIP package
Temperature range −40˚C to +85˚C or −55˚C to +125˚C
Latched TRI-STATE output
Direct access to "comparator in" and "multiplexer out" for signal conditioning
ADC0816 equivalent to MM74C948
ADC0817 equivalent to MM74C948-1

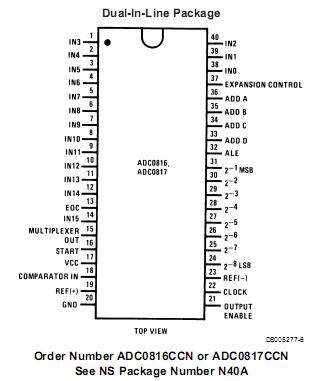

ADC0817 Connection Diagram

ADC0817 datasheet

ADC0817
PDF/DataSheet Download

Datasheet: ADC0817
File Size: 251182 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download

·ADC0800
NSC [National Semiconductor]
ADC0800 8-Bit A/D Converter
170168 KB
·ADC08004-1CD
PHILIPS [Philips Semiconductors]
CMOS 8-bit A/D converters
154399 KB
·ADC08004-1CN
PHILIPS [Philips Semiconductors]
CMOS 8-bit A/D converters
154399 KB
·ADC08004-1LCD
PHILIPS [Philips Semiconductors]
CMOS 8-bit A/D converters
154399 KB
·ADC08004-1LCN
PHILIPS [Philips Semiconductors]
CMOS 8-bit A/D converters
154399 KB
·ADC0800PCD
NSC [National Semiconductor]
ADC0800 8-Bit A/D Converter
170168 KB
·ADC0800PD
NSC [National Semiconductor]
ADC0800 8-Bit A/D Converter
170168 KB
·ADC0801
NSC [National Semiconductor]
8-Bit uP Compatible A/D Converters
2975740 KB

Related Part Number

ADC0817 Relative Products

ADC0816CCN/NOPB
IC ADC 8BIT W/16CH MUX 40-DIP
ADC08161CIWM
IC ADC 500NS S/H 2.5V REF 20SOIC
ADC08161
Using a patented multi-step A/D conversion technique, the 8-bit ADC08161 CMOS A/D converter offers 500 ns conversion time, internal sample-and-hold (S/H), a 2.5V bandgap reference, and dissipates only 100 mW of power. The ADC08161 performs an 8-bit conversio...
ADC0816
The ADC0816, ADC0817 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 16-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion...

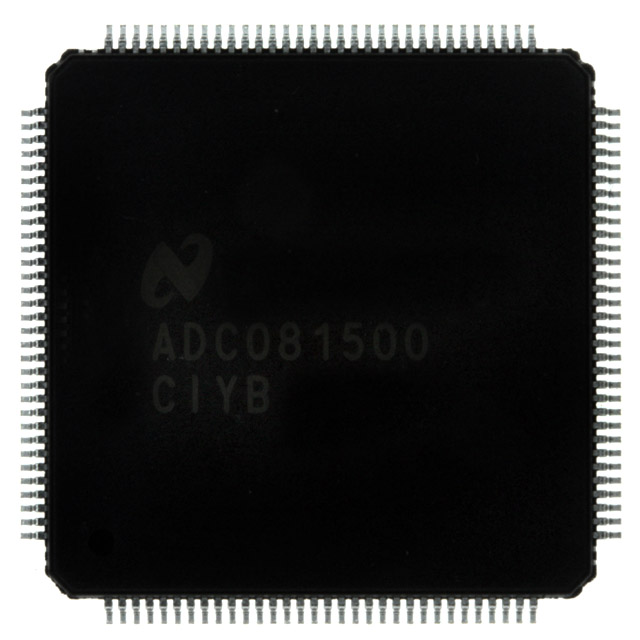

ADC081500CIYB/NOPB
