ADC0841

Features:

Operates ratiometrically or with 5 V_DC voltage reference
No zero or full-scale adjust required
Internal clock
0V to 5V input range with single 5V power supply
0.3" standard width 20-pin package
20 Pin Molded Chip Carrier Package

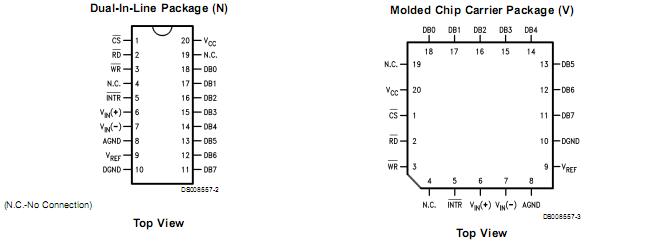

Pinout




Specifications

Supply Voltage (V_CC)                                         6.5V
Voltage
Logic Control Inputs                                         −0.3V to V_CC+0.3V
At Other Inputs and Outputs                            −0.3V to V_CC+0.3V
Input Current Per Pin (Note 3)                          ±5mA
Input Current Per Package (Note 3)                 ±20 mA
Storage Temperature −65˚C to +150˚C
Package Dissipation at TA=25˚C                       875 mW


Description

The ADC0841 is a CMOS 8-bit successive approximation A/D converter. Differential inputs provide low frequency input common mode rejection and allow offsetting the analog range of the converter. In addition, the reference input can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution. The A/D is designed to operate with the control bus of a variety of microprocessors. TRI-STATE® output latches that directly drive the data bus permit the A/D to be configured as a memory location or I/O device to the microprocessor with no interface logic necessary.
