Resolution | 8 bits |
Channels | 1 Channels |
SNR | 47.5 dB |
SFDR | 56 dB |
ENOB | 7.5 bits |
Max Sample Rate | 500 MSPS |
Min Sample Rate | 200 MSPS |
Power Dissipation | 0.8 Watt |
PowerWise Rating 1 | 8.84 pJ/conv |
DNL (+/-) | 0.15 LSB |
INL (+/-) | 0.3 LSB |
SINAD | 47 dB |
THD dB | -56 dB |
Min Supply Voltage | 1.8 Volt |
Max Supply Voltage | 2 Volt |
Nominal Vin | 0.7 Vpp |
Temperature Min | -40 deg C |
Temperature Max | 85 deg C |
Data Converter Type | ADC |
Automotive Selection Guide | No |
PowerWise | Yes |
View Using Catalog |

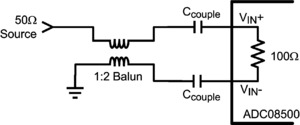

The ADC08500 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 500 MSPS. Consuming a typical 0.8 Watts at 500 MSPS from a single 1.9 Volt supply, this device is guaranteed to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 ENOB with a 250 MHz input signal and a 500 MHz sample rate while providing a 10
The converter has a 1:2 demultiplexer that feeds two LVDS buses and reduces the output data rate on each bus to half the sampling rate.
The converter typically consumes less than 3.5 mW in the Power Down Mode and is available in a 128-lead, thermally enhanced exposed pad LQFP and operates over the Industrial (-40°C
Reliability Metrics
Part Number | Process | EFR Reject | EFR Sample Size | PPM | LTA Rejects | LTA Device Hours | FITS | MTTF (Hours) |
ADC08500CIYB | CMOS9 | 1 | 6382 | 157 | 0 | 923000 | 4 | 261903770 |
