General Description
ADC088S022 General Description
The ADC088S022 is a low-power, eight-channel CMOS 8-bit analog-to-digital converter specified for conversion throughput rates of 50 kSPS to 200 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to eight input signals at inputs IN0 through IN7. The output serial data is straight binary and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE ™, and many common DSP serial interfaces.
The ADC088S022 may be operated with independent analog and digital supplies. The analog supply (VA) can range from +2.7V to +5.25V, and the digital supply (VD) can range from +2.7V to VA. Normal power consumption using a +3V or +5V supply is 0.9 mW and 5.5 mW, respectively. The powerdown feature reduces the power consumption to 0.03 W using a +3V supply and 0.15 W using a +5V supply. The ADC088S022 is packaged in a 16-lead TSSOP package. Operation over the extended industrial temperature range of −40°C to +105°C is guaranteed.
ADC088S022 Maximum Ratings
Analog Supply Voltage VA −0.3V to 6.5V
Digital Supply Voltage VD −0.3V to VA + 0.3V,
max 6.5V
Voltage on Any Pin to GND −0.3V to VA +0.3V
Input Current at Any Pin (Note 3) ±10 mA
Package Input Current(Note 3) ±20 mA
Power Dissipation at TA = 25°C See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 250V
Soldering Temperature, Infrared,
10 seconds (Note 6) 260°C
Junction Temperature +150°C
Storage Temperature −65°C to +150°C
Digital Supply Voltage VD −0.3V to VA + 0.3V,
max 6.5V
Voltage on Any Pin to GND −0.3V to VA +0.3V
Input Current at Any Pin (Note 3) ±10 mA
Package Input Current(Note 3) ±20 mA
Power Dissipation at TA = 25°C See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 250V
Soldering Temperature, Infrared,
10 seconds (Note 6) 260°C
Junction Temperature +150°C
Storage Temperature −65°C to +150°C
ADC088S022 Features
· Eight input channels
· Variable power management
· Independent analog and digital supplies
·SPI/QSPI/MICROWIRE/DSP compatible
· Packaged in 16-lead TSSOP
· Variable power management
· Independent analog and digital supplies
·SPI/QSPI/MICROWIRE/DSP compatible
· Packaged in 16-lead TSSOP
ADC088S022 Typical Application
· Automotive Navigation
· Portable Systems
· Medical Instruments
· Mobile Communications
· Instrumentation and Control Systems
· Portable Systems
· Medical Instruments
· Mobile Communications
· Instrumentation and Control Systems

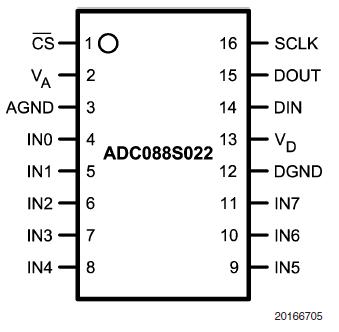

ADC088S022 Connection Diagram
