Features:

Single-ended input
Selectable capture buffer size
PLL for clock multiplication
Reference Ladder Top and Bottom accessible
Linear power scaling with sample rate
FPGA training pattern
Power-down feature



Application

Laser Ranging
RADAR
Pulse Capturings



Pinout

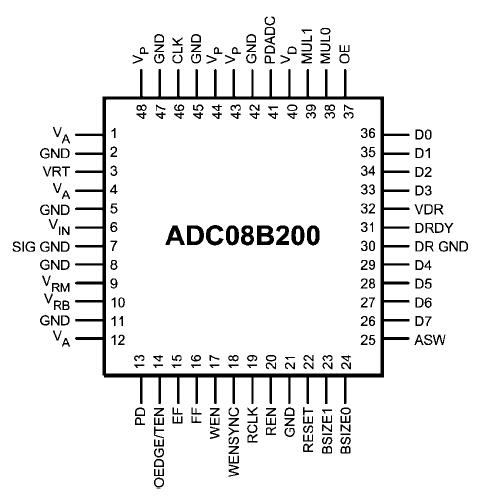

  Connection Diagram


Specifications

Supply Voltage (VA, VP, VD, VDR)        -0.3V to 3.8V
Driver Supply Voltage (VDR)        -0.3V to VA +0.3V
Voltage on Any Input or Output Pin      −0.3V to VA
Reference Voltage (VRT, VRB)                 GND to VA
Input Current, Data Outputs                        ±1 mA
Input Current all other pins (Note 3)          ±25 mA
Package Input Current (Note 3)                ±50 mA
Power Dissipation at TA = 25°C        See (Note 4)
ESD Susceptibility  (Note 5)
Human Body Model                                    2500V
Machine Model                                             200V
Charged Device Model                                1000V
Soldering Temperature, Infrared,
10 seconds (Note 6)                                 235°C
Storage Temperature             −65°C to +150°C



Description

The ADC08B200 is a high speed analog-to-digital converter (ADC) with an integrated capture buffer. The 8-bit, 200 MSPS A/D core is based upon the proven ADC08200 with integrated track-and-hold and is optimized for low power consumption. This device contains a selectable size capture buffer of up to 1,024 bytes that allows fast capture of an input signal with a slower readout rate. An on-chip clock PLL circuit provides the option of on-chip clock rate multiplication to provide the high speed sampling clock.

The ADC08B200 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC08B200's reference ladder are available for connections, enabling a wide range of input possibilities. The digital outputs are TTL/ CMOS compatible with a separate output power supply pin to support interfacing with 2.7V to 3.3V logic. The digital inputs and outputs are low voltage TTL/CMOS compatible and the output data format is straight binary.

The ADC08B200 is offered in a 48-pin plastic package (TQFP) and is specified over the extended industrial temperature range of −40°C to +105°C. An evaluation board is available to assist in the easy evaluation of the ADC08B200.
