ADC08L060 General Description
The ADC08L060 is a low-power, 8-bit, monolithic analog-todigital converter with an on-chip track-and-hold circuit. Optimized for low cost, low power, small size and ease of use, this product operates at conversion rates of 10 MSPS to 60 MSPS while consuming just 0.65 mW per MHz of clock frequency, or 39 mW at 60 MSPS. Raising the PD pin puts the ADC08L060 into a Power Down mode where it consumes < 1.0 mW.
The unique architecture achieves 7.6 Effective Bits. The ADC08L060 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC08L060's reference ladder are available for connections, enabling a wide range of input possibilities. The digital outputs are TTL/CMOS compatible with a separate output power supply pin to support interfacing with 1.8V to 3V logic. The digital inputs (CLK and PD) are TTL/CMOS compatible.
The ADC08L060 is offered in a 24-lead plastic package (TSSOP) and is specified over the industrial temperature range of -40 to +85.
ADC08L060 Maximum Ratings
Supply Voltage (VA) 3.8V
Driver Supply Voltage (VDR) VA +0.3V
Voltage on Any Input or Output Pin -0.3V to VA
Reference Voltage (VRT, VRB) VA to AGND
CLK, PD Voltage Range -0.05V to
(VA + 0.05V)
Input Current at Any Pin (Note 3) ±25 mA
Package Input Current (Note 3) ±50 mA
Power Dissipation at TA = 25 See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 200V
Soldering Temperature, Infrared,
10 seconds (Note 6) 235
Storage Temperature -65 to +150
ADC08L060 Typical Application
·Digital Imaging
·Set-top boxes
·Portable Instrumentation
·Communication Systems
·X-ray imaging
·Viterbi decoders

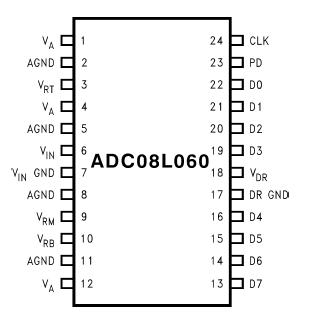

ADC08L060 Connection Diagram
