ADC10030 General Description
ADC10030 Maximum Ratings
Positive Supply Voltage (V = VA = VD) 6.5V
Voltage on Any Pin -0.3V to (VA or VD +0.3V)
Input Current at Any Pin (Note 3) ±25 mA
Package Input Current (Note 3) ±50 mA
Package Dissipation at TA = 25 See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 1500V
Machine Model 200V
Soldering Temp., Infrared, 10 sec. (Note 6) 300
Storage Temperature -65 to +150
ADC10030 Features
·Internal Sample-and-Hold
·Single +5V Operation
·Low Power Standby Mode
·Guaranteed No Missing Codes
·TRI-STATE® Outputs
·TTL/CMOS or 3V Logic Input/Output Compatible
ADC10030 Typical Application
·Digital Video
·Communications
·Document Scanners
·Medical Imaging
·Electro-Optics
·Plain Paper Copiers
·CCD Imaging

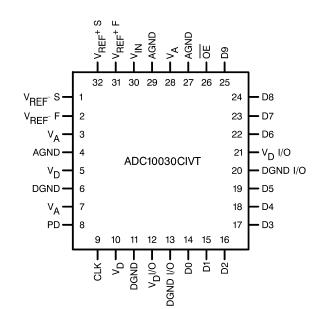

ADC10030 Connection Diagram
