Purchase ADC1175, In-stock ADC1175 From SeekIC.
MFG:NS D/C:TSSOP
Part Number: ADC1175
MFG: NS
D/C: TSSOP
Description: The ADC1175 is a low power, 20 Msps analog-to-digital converter that digitizes signals to 8 bits while consuming just 6...
- Table of contents:
ADC1175
-
Suppliers
DataSheet
General Description
ADC1175 General Description
The ADC1175 is a low power, 20 Msps analog-to-digital converter that digitizes signals to 8 bits while consuming just 60 mW of power (typ). The ADC1175 uses a unique architecture that achieves 7.5 Effective Bits. Output formatting is straight binary coding.
The excellent DC and AC characteristics of this device, together with its low power consumption and +5V single suppl yoperation, make it ideally suited for many video, imaging and communications applications, including use in portable equipment. Furthermore, the ADC1175 is resistant to latchup and the outputs are short-circuit proof. The top and bottom of the ADC1175's reference ladder is available for connections, enabling a wide range of input possibilities.
The ADC1175 is offered in SOIC (EIAJ) and TSSOP. It is designed to operate over the commercial temperature range of -20 to +75.
ADC1175 Maximum Ratings
AVDD, DVDD.....................................................................6.5V
Voltage on Any Pin.............................................-0.3V to 6.5V
VRT, VRB............................................................AVSS to AVDD
CLK, OE Voltage.................................-0.05 to (AVDD + 0.05V)
Digital Output Voltage......................................DVSS to DVDD
Input Current (Note 3).................................................±25mA
Package Input Current
(Note 3)........................................................................±50mA
Package Dissipation at 25 (Note 4)
ESD Susceptibility (Note 5)
Human Body Model........................................................2000V
Machine Model ................................................................200V
Soldering Temp, Infared, 10
sec. (Note 6) ..................................................................300
Storage Temperature......................................-65 to +150
Voltage on Any Pin.............................................-0.3V to 6.5V
VRT, VRB............................................................AVSS to AVDD
CLK, OE Voltage.................................-0.05 to (AVDD + 0.05V)
Digital Output Voltage......................................DVSS to DVDD
Input Current (Note 3).................................................±25mA
Package Input Current
(Note 3)........................................................................±50mA
Package Dissipation at 25 (Note 4)
ESD Susceptibility (Note 5)
Human Body Model........................................................2000V
Machine Model ................................................................200V
Soldering Temp, Infared, 10
sec. (Note 6) ..................................................................300
Storage Temperature......................................-65 to +150
ADC1175 Features
·Internal Sample-and-Hold Function
·Single +5V Operation
·Internal Reference Bias Resistors
·Industry Standard Pinout
·TRI-STATE® Outputs
·Single +5V Operation
·Internal Reference Bias Resistors
·Industry Standard Pinout
·TRI-STATE® Outputs
ADC1175 Typical Application
·Video Digitization
·Digital Still Cameras
·Set Top Boxes
·Communications
·Medical Imaging
·Personal Computer Video Cameras
·Digital Television
·CCD Imaging
·Electro-Optics
·Digital Still Cameras
·Set Top Boxes
·Communications
·Medical Imaging
·Personal Computer Video Cameras
·Digital Television
·CCD Imaging
·Electro-Optics
ADC1175 Connection Diagram
ADC1175
PDF/DataSheet Download
- Datasheet: ADC1175
- File Size: 500291 KB
- Manufacturer:
- Click here to Download
- ·ADC0800
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC08004-1CD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1CN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC0800PCD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0800PD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0801
- NSC [National Semiconductor]
- 8-Bit uP Compatible A/D Converters
- 2975740 KB
ADC1175 Relative Products

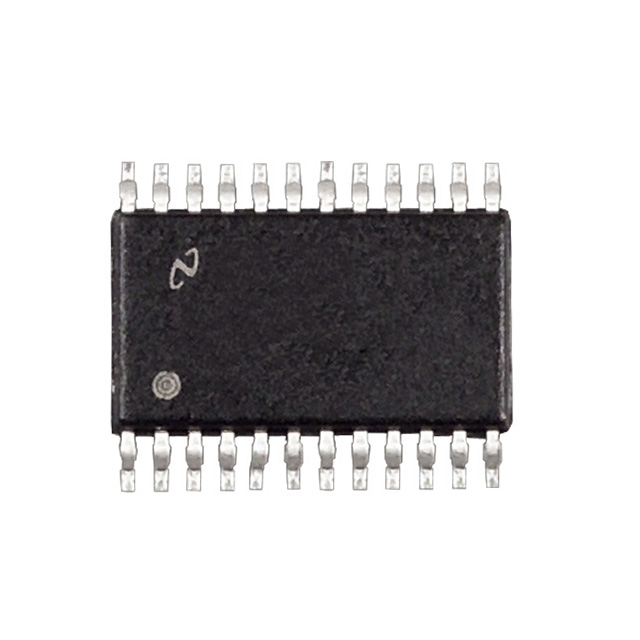

ADC1173CIMTCX/NOPB
IC ADC 8BIT 15MSPS 3V 24-TSSOP
-
ADC1173CIMTC/NOPB
IC ADC 8BIT 15MSPS 3V 24-TSSOP

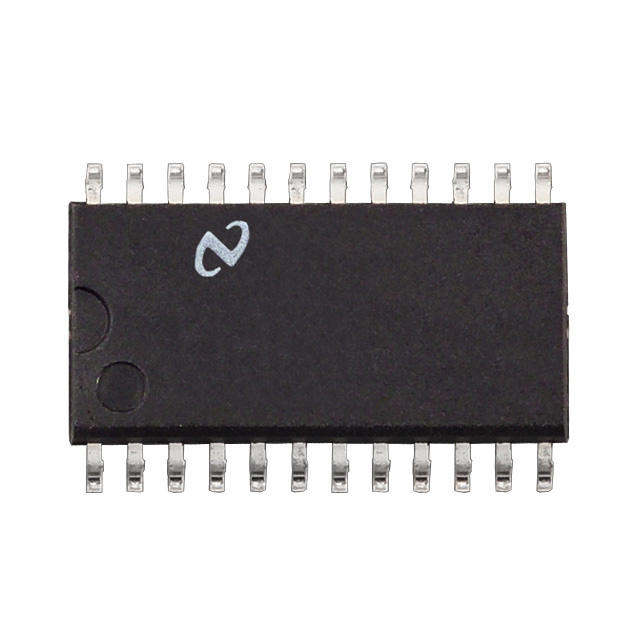

ADC1173CIJMX
