Part Number: ADC12041



MFG: TOSHIBA

Package Cooled: SSOP-28

D/C: 12

Description: Operating from a single 5V power supply, the ADC12041 is a 12 bit + sign, parallel I/O, self-calibrating, sampling anal...


Urgent Purchase

ADC12041 General Description


Operating from a single 5V power supply, the ADC12041 is a 12 bit + sign, parallel I/O, self-calibrating, sampling analog-to-digital converter (ADC). The maximum sampling rate is 216 kHz. On request, the ADC goes through a self-calibration process that adjusts linearity, zero and full-scale errors.
The ADC12041 can be configured to work with many popular microprocessors/microcontrollers and DSPs including National's HPC family, Intel386 and 8051, TMS320C25, Motorola MC68HC11/16, Hitachi 64180 and Analog Devices ADSP21xx.
For complementary voltage references see the LM4040, LM4041 or LM9140.

ADC12041 Maximum Ratings

Supply Voltage (VA+ and VD+)                                                6.0V
Voltage at all Inputs                                         -0.3V to V+ + 0.3V
|VA + - VD+| 300 mV
|AGND - DGND| 300 mV
Input Current at Any Pin (Note 3)                                     ±30 mA
Package Input Current (Note 3)                                      ±120 mA
Power Dissipation (Note 4)
at TA = 25                                                                       500 mW
Storage Temperature                                             -65 to +150
Lead Temperature
SSOP Package
Vapor Phase (60 sec.)                                                            210
Infared (15 sec.)                                                                     220
V Package, Infared (15 sec.)                                                   300
ESD Susceptibility (Note 5)                                                     3.0 kV

ADC12041 Features

·Fully differential analog input
·Programmable acquisition times and user-controllable throughput rates
·Programmable data bus width (8/13 bits)
·Built-in Sample-and-Hold
·Programmable auto-calibration and auto-zero cycles
·Low power standby mode
·No missing codes

ADC12041 Typical Application

·Medical instrumentation
·Process control systems
·Test equipment
·Data logging
·Inertial guidance

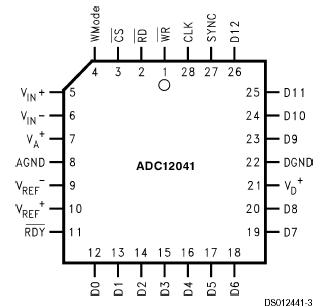

ADC12041 Connection Diagram

ADC12041 Connection Diagram

ADC12041 datasheet

ADC12041
PDF/DataSheet Download

Find ADC12041 Suppliers
