Part Number: ADC12048

MFG: NS

Package Cooled: PQFP44

D/C: 2007+

Description: Operating from a single 5V power supply, the ADC12048 is a 12 bit + sign, parallel I/O, self-calibrating, sampling anal...

ADC12048 General Description

Operating from a single 5V power supply, the ADC12048 is a 12 bit + sign, parallel I/O, self-calibrating, sampling analog-to-digital converter (ADC) with an eight input fully differential analog multiplexer. The maximum sampling rate is 216 kHz. On request, the ADC goes through a self-calibration process that adjusts linearity, zero and full-scale errors.
The ADC12048's 8-channel multiplexer is software programmable to operate in a variety of combinations of single-ended, differential, or pseudo-differential modes. The fully differential MUX and the 12-bit + sign ADC allows for the difference between two signals to be digitized.
The ADC12048 can be configured to work with many popular microprocessors/microcontrollers and DSPs including National's HPC family, Intel386 and 8051, TMS320C25, Motorola MC68HC11/16, Hitachi 64180 and Analog Devices ADSP21xx.
For complementary voltage references see the LM4040, LM4041 or LM9140.

ADC12048 Maximum Ratings

Supply Voltage (V_A+ and V_D+)                                6.0V
Voltage at all Inputs                         -0.3V to V+ + 0.3V
|V_A+ - V_D+|                                                        300 mV
|AGND - DGND|                                                 300 mV
Input Current at Any Pin (Note 3)                    ±30 mA
Package Input Current (Note 3)                     ±120 mA
Power Dissipation (Note 4)
at T_A= 25                                                      875 mW
Storage Temperature                           -65 to +150
Lead Temperature
VF Package
Vapor Phase (60 sec.)                                          210
Infared (15 sec.)                                                   220
V Package, Infared (15 sec.)                                 300
ESD Susceptibility (Note 5)                                   3.0 kV

ADC12048 Features

·8-channel programmable Differential or Single-Ended multiplexer
·Programmable Acquisition Times and user-controllable Throughput Rates
·Programmable data bus width (8/13 bits)
·Built-in Sample-and-Hold
·Programmable Auto-Calibration and Auto-Zero cycles
·Low power standby mode
·No missing codes

ADC12048 Typical Application

·Medical instrumentation
·Process control systems
·Test equipment
·Data logging
·Inertial guidance

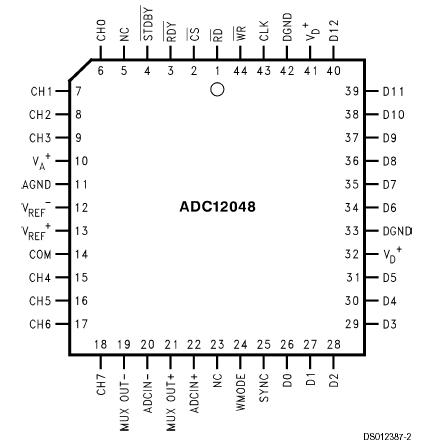

ADC12048 Connection Diagram

ADC12048 datasheet

ADC12048
PDF/DataSheet Download

Datasheet: ADC12048
File Size: 654471 KB
Manufacturer:
Click here to Download
