ADC12081 General Description


The ADC12081 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 5 megasamples per second (MSPS). The ADC12081 utilizes an innovative pipeline architecture to minimize die size and power consumption. The ADC12081 uses self-calibration and error correction to maintain accu-racyand performance over temperature.
The ADC12081 converter operates on a 5V power supply and can digitize analog input signals in the range of 0 to 2V. A single convert clock controls the conversion operation. All digital I/O is TTL compatible.
The ADC12081 is designed to minimize external components necessary for the analog input interface. An internal sample-and-hold circuit samples the analog input and an internal amplifier buffers the reference voltage input.
The ADC12081 is available in the 32-lead TQFP package and is designed to operate over the extended commercial temperature range of -40 to +85.

ADC12081 Maximum Ratings

Supply Voltage                                                                 6.5V
Voltage on Any Output                                -0.3V to V+ +0.3V
Input Current at Any Pin (Note 3)                                ±25mA
Package Input Current (Note 3)                                   ±50mA
Package Dissipation See (Note 4)
ESD Susceptibility
Human Body Model                                                         1500V
Machine Model                                                                  150V
Soldering Temp., Infrared, 10 300
sec.(Note 6)
Storage Temp.                                                  -65 to +150
Maximum Junction Temp.                                                  150

ADC12081 Features

·Single 5V power supply
·Simple analog input interface
·Internal Sample-and-hold
·Internal Reference buffer amplifier
·Low power consumption

ADC12081 Typical Application

·Image processing front end
·PC-based data acquisition
·Scanners
·Fax machines
·Waveform digitizer

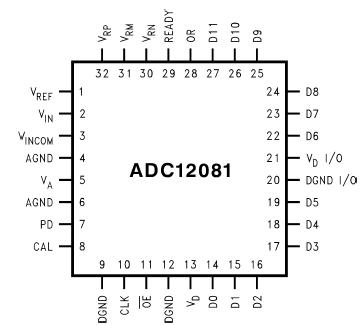

ADC12081 Connection Diagram

ADC12081 Connection Diagram

ADC12081 datasheet

ADC12081
PDF/DataSheet Download
