ADC12181

Features:

·Single 5V power supply
·Simple analog input interface
·Internal Sample-and-hold
·Internal Reference buffer amplifier
·Low power consumption

Application

·Image processing front end
·PC-based data acquisition
·Scanners
·Fax machines
·Waveform digitizer

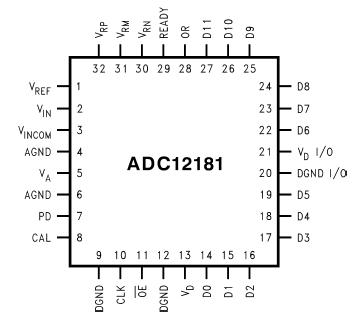

Pinout






Specifications

Supply Voltage 6.5V
Voltage on Any Output -0.3V to V+ +0.3V
Input Current at Any Pin (Note 3) ±25mA
Package Input Current (Note 3)±50mA
Package Dissipation See (Note 4)
ESD Susceptibility
Human Body Model 1500V
Machine Model200V
Soldering Temp., Infrared, 10 300
sec.(Note 6)
Storage Temp.-65 to +150
Maximum Junction Temp.150

Resolution	12 bits
Channels	1 Channels
SNR	65 dB
SFDR	73 dB
ENOB	10.4 bits
Max Sample Rate	10 MSPS
Min Sample Rate	1 MSPS
Power Dissipation	0.235 Watt
PowerWise Rating 1	17.39 pJ/conv
INL (+/-)	0.7 LSB
SINAD	64.5 dB
DNL (+/-)	0.4 LSB
THD dB	-74 dB
Min Supply Voltage	5.25 Volt
Max Supply Voltage	4.75 Volt
Nominal Vin	2 Vpp
Temperature Min	-20 deg C
Temperature Max	75 deg C
Data Converter Type	ADC
PowerWise	No
View Using Catalog

Description

The ADC12181 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 10 megasamples per second (MSPS). The ADC12181 utilizes an innovative pipeline architecture to minimize die size and power consumption. Self-calibration and error correction maintain accuracy and performance over temperature.

The ADC12181 converter operates on a 5V power supply and can digitize analog input signals in the range of 0 to 2V. A single convert clock controls the conversion operation. All digital I/O is TTL compatible.

The ADC12181 is designed to minimize external components necessary for the analog input interface. An internal sample-and-hold circuit samples the analog input and an internal amplifier buffers the reference voltage input.

The ADC12181 is available in the 32-lead TQFP package and is designed to operate over the extended commercial temperature range of -40 to +85.
