ADC12191 General Description
The ADC12191 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 10 megasamples per second (MSPS). The ADC12191 utilizes an innovative pipeline architecture to minimize die size and power consumption. The ADC12191 uses self-calibration and error correction to maintain accuracy and performance over temperature.
The ADC12191 converter operates on a 5V power supply and can digitize analog input signals in the range of 0 to 2V. A single convert clock controls the conversion operation. All digital I/O is TTL compatible.
The ADC12191 is designed to minimize external components necessary for the analog input interface. An internal sample-and-hold circuit samples the analog input and an internal amplifier buffers the reference voltage input.
The ADC12191 is available in the 32-lead TQFP package and is designed to operate over the extended commercial temperature range of -40 to +85.
ADC12191 Maximum Ratings
Supply Voltage 6.5V
Voltage on Any Output -0.3V to V+ +0.3V
Input Current at Any Pin (Note 3) ±25mA
Package Input Current (Note 3) ±50mA
Package Dissipation See (Note 4)
ESD Susceptibility
Human Body Model 1500V
Machine Model 150V
Soldering Temp., Infrared, 10 sec. 300
(Note 6)
Storage Temp. -65 to +150
Maximum Junction Temp. 150
ADC12191 Features
·Single 5V power supply
·Simple analog input interface
·Internal Sample-and-hold
·Internal Reference buffer amplifier
·Low power consumption
ADC12191 Typical Application
·Image processing front end
·PC-based data acquisition
·Scanners
·Fax machines
·Waveform digitizer

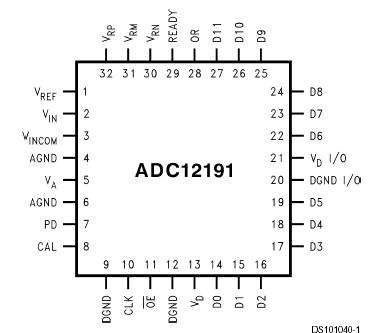

ADC12191 Connection Diagram
