Part Number: ADC124S051
Description: The ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed ...
- Table of contents:
ADC124S051
-
Suppliers
DataSheet
General Description
ADC124S051 General Description
The ADC124S051 is a low-power, four-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface.
Unlike the conventional practice of specifying performance at a single sample rate only, the ADC124S051 is fully specified over a sample rate range of 200 kSPS to 500 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces.
The ADC124S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 3.0 mW and 10.0 mW, respectively.
The power-down feature reduces the power consumption to just 0.14 W using a +3V supply, or 0.32 W using a +5V supply.
The ADC124S051 is packaged in a 10-lead MSOP package.
Operation over the industrial temperature range of −40 to +85 is guaranteed.
ADC124S051 Maximum Ratings
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage VA −0.3V to 6.5V
Voltage on Any Pin to GND −0.3V to VA +0.3V
Input Current at Any Pin (Note 3) ±10 mA
Package Input Current(Note 3) ±20 mA
Power Consumption at TA = 25 See (Note 4)
ESD Susceptibility (Note 5)
Human Body Model 2500V
Machine Model 250V
Junction Temperature +150
Storage Temperature −65to +150
ADC124S051 Features
Specified over a range of sample rates.
Four input channels
Variable power management
Single power supply with 2.7V - 5.25V range
Four input channels
Variable power management
Single power supply with 2.7V - 5.25V range
ADC124S051 Typical Application
Portable Systems
Remote Data Aquisitions
Instrumentation and Control Systems
Remote Data Aquisitions
Instrumentation and Control Systems
ADC124S051 Connection Diagram
ADC124S051
PDF/DataSheet Download
- Datasheet: ADC124S051
- File Size: 900787 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·ADC0800
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC08004-1CD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1CN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCD
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC08004-1LCN
- PHILIPS [Philips Semiconductors]
- CMOS 8-bit A/D converters
- 154399 KB
- ·ADC0800PCD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0800PD
- NSC [National Semiconductor]
- ADC0800 8-Bit A/D Converter
- 170168 KB
- ·ADC0801
- NSC [National Semiconductor]
- 8-Bit uP Compatible A/D Converters
- 2975740 KB
ADC124S051 Relative Products

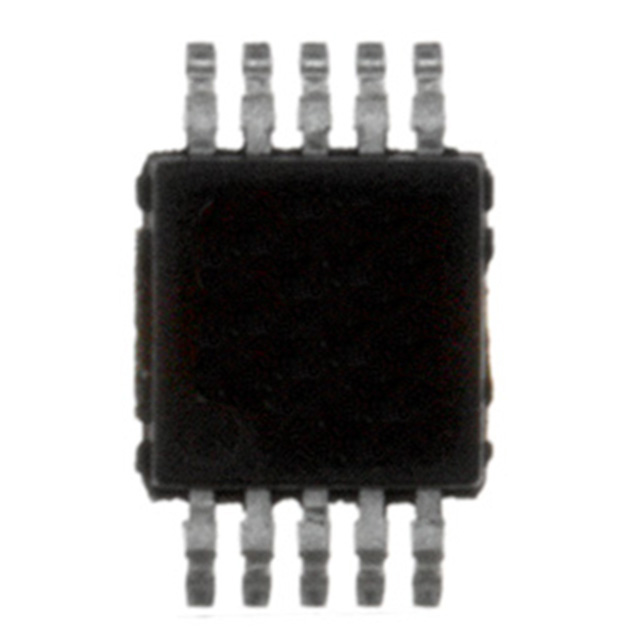

ADC124S021CIMM/NOPB
