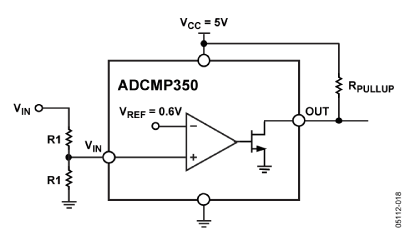

ADCMP350

Features:

Comparators with 0.6V or 1.2V On-Chip References
Output Stages
Open-Drain Active-Low (ADCMP350/1)
Push-Pull Active-Low (ADCMP352/3)
Open-Drain Active-High (ADCMP354/5)
Push-Pull Active-High (ADCMP356/7)
High Voltage (up to 22V) tolerance on VIN and Open-Drain
Output Pins
Low Power Consumption (10µA)
10nA Input Bias Current
20mV Hysteresis
Specified Over -40°C to +125°C Temperature Range
4-Lead SC70 Package




Application

Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Portable Equipment





Pinout






Specifications



</t

VCC	-0.3V to +6V
OUT, OUT (Open-Drain)	IN+, IN- -0.3V to +6V
OUT, OUT (Push-Pull)	-0.3V to +25V
Operating Temperature Range	-0.3V to +VCC+0.3V
Storage Temperature Range	-40°C to +125°C
JA Thermal Impedance, SC70	-65°C to +150°C
Lead Temperature	146°C/W
Soldering (10 sec)	300°C
Vapour Phase (60 sec)	215°C
Infrared (15 sec)	220°C

Description

The ADCMP350-ADCMP357 are comparator and reference circuits suitable for use in general purpose applications. Highperformance over the -40°C to +125°C temperature range make them suitable for use in automotive and other thermally harsh applications, while low power consumption and space efficient SC70 packaging make them ideal for battery powered portable equipment.
