Part Number: ADCS9888
Description: The ADCS9888 is a high performance Analog Front End (AFE) for digital video applications at resolution...
- Table of contents:
ADCS9888
-
Suppliers
DataSheet
General Description
ADCS9888 General Description
The ADCS9888 is a high performance Analog Front End (AFE) for digital video applications at resolutions up to UXGA. It performs all the analog and mixed signal functions necessary to digitize a variety of computer and component video sources. The ADCS9888 has a 3 channel, 8 bit 205 MHz ADC with full DC restoration and gain/offset compensation. Full processing of synchronization signals is included with on-chip PLL locked to the pixel rate. Digital sync and analog sync-on-green signals are supported. Flexible data output modes support a variety of downstream data capture and processing applications.
ADCS9888 Maximum Ratings
Positive Supply Voltage (V+ = VD, PVD, VDD) With Respect to GND........................3.6V
Voltage on Any Input or Output Pin ................................−0.3V to V+ +0.3V
Voltage on VSYNC, HSYNC Input Pin ..................................−0.3V to 5.5V
Input Current at any pin (Note 3).......................................±25 mA
Package Input Current (Note 3)........................................±50 mA
Package Dissipation at TA = 25°C ......................................(Note 4)
ESD Susceptibility (Note 5)
Human Body Model ............................................... 6500V
Machine Model .................................................. 250V
Soldering Information .............................................(Note 6)
Storage Temperature .......................................−65°C to +150°C
Voltage on Any Input or Output Pin ................................−0.3V to V+ +0.3V
Voltage on VSYNC, HSYNC Input Pin ..................................−0.3V to 5.5V
Input Current at any pin (Note 3).......................................±25 mA
Package Input Current (Note 3)........................................±50 mA
Package Dissipation at TA = 25°C ......................................(Note 4)
ESD Susceptibility (Note 5)
Human Body Model ............................................... 6500V
Machine Model .................................................. 250V
Soldering Information .............................................(Note 6)
Storage Temperature .......................................−65°C to +150°C
ADCS9888 Features
· 205 million pixels/s conversion rate
· Digitally programmed gain and offset for red, green and blue color balancing
· Compatible with RGB and YUV/YPbPr video signals
· Output format supports 4:2:2 video pulldown
· Digitally programmed gain and offset for red, green and blue color balancing
· Compatible with RGB and YUV/YPbPr video signals
· Output format supports 4:2:2 video pulldown
ADCS9888 Typical Application
· LCD flat panel monitors
·Video projectors
· Plasma display panels
· Video capture hardware
· RGB and YUV video processing
·Video projectors
· Plasma display panels
· Video capture hardware
· RGB and YUV video processing

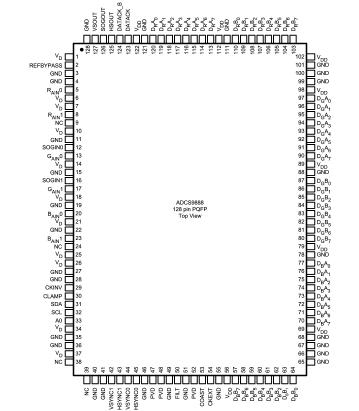

ADCS9888 Connection Diagram
ADCS9888
